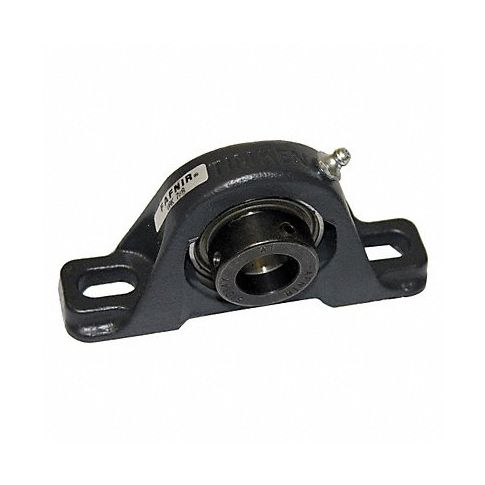

Pillow Block Brg 2 3/16in Bore Cast Iron MPN:VAK 2 3/16
Pillow block bearings are critical components in power transmission systems where they serve as support and reduce friction between shafts or rails and bearing housings. The cast iron construction of this particular pillow block bearing is ideal for light-duty applications capable of supporting loads up to 1430lbs. Its self-lubricating nature minimizes maintenance in dusty or wet environments while prolonging service life due to its high wear resistance, thermal capacity, and low noise production. The 2 3/16in bore ensures easy mounting on shafts or rail making it compatible with a variety of equipment. Owing to these benefits, industries such as construction, agriculture, manufacturing, and household machines like lawnmowers use pillow block bearings to efficiently transmit power and improve performance.
Technical Specifications
- Item Pillow Block Bearing
- Mounted Bearing Item Pillow Block Bearing
- Bearing Insert Type Ball
- Bore Dia. 2 3/16 in
- Bolt Hole Center-to-Center 6 15/16 in
- Mounting Surface to Shaft Center 2 7/16 in
- Bearing Housing Material Type Cast Iron
- Shaft Locking Type Eccentric Locking Collar
- Bearing Insert Material 52100 Chrome Steel
- Series VAK
- Number of Bolts 2
- Bolt Size 5/8 in
- Overall Height 4 29/32 in
- Overall Width 2 5/16 in
- Overall Length 8 3/4 in
- Bearing Lubrication Mobil Polyrex EM or NLGI #2 Equivalent
- Dynamic Load Capacity 10,800 lb
- Static Load Capacity 6,400 lb
- Temp. Range -65 Degrees to 200 Degrees F
- Finish Powder Coated
Manufacturer Details
- Manufacturer: Timken
- Condensed Mfg Number: VAK2316
- MPN: VAK 2 3/16
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
