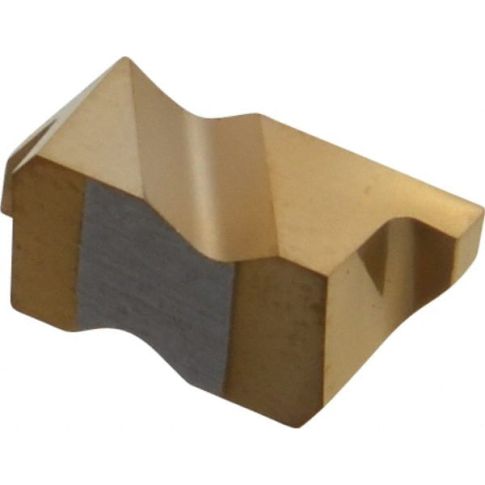

Grooving Insert: FLG2047 GP3, Solid Carbide MPN:562647RJ5R
Grooving Insert: FLG2047 GP3, Solid Carbide MPN:562647RJ5R is available to buy in increments of 10
Grooving Insert: FLG2047 GP3, Solid Carbide
Grooving Insert: FLG2047 GP3, Solid Carbide TiN Finish, Right Hand, 1.19 mm Cutting Width, 1.27 mm Max Depth, Series Flo-Lock
Product Information
- : 562647RJ5R
- Coating Process: PVD
- Coating/Finish: TiN
- Corner Radius (Decimal Inch): 0.0020 to 0.0050
- Cutting Height (Decimal Inch): 0.2190
- Cutting Tool Application: Grooving
- Cutting Width (Decimal Inch): 0.0469
- Cutting Width (Inch): 3/64
- Cutting Width (mm): 1.19
- Full Radius: No
- Gage Diameter (Decimal Inch): 0.1875
- Gage Diameter (Inch): 3/16
- Insert Hand: Right Hand
- Insert Material: Solid Carbide
- Insert Size: 2047
- Insert Size Code: 2047
- Insert Style: FLG
- Iso Code: FLG-2047R
- Lead Angle: 3
- Manufacturer Grade: GP3
- Material Grade: Micrograin
- Maximum Corner Radius (Decimal Inch): 0.0050
- Maximum Depth of Cut (Decimal Inch): 0.0500
- Maximum Depth of Cut (mm): 1.27
- Maximum Depth of Cut Range (Decimal Inch): 0.0000 to 0.0750
- Maximum Depth of Cut Range (mm): 0.00 to 2.00
- Minimum Corner Radius (Decimal Inch): 0.0020
- Msc/Manufacturer Number: False
- Multi-Use Tool: No
- Overall Width (Decimal Inch - 4 Decimals): 0.1500
- Rake: Positive
- Rake Angle: 55.00
- Series: Flo-Lock
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Country of Origin: US, United States
- TAA Compliant: Yes
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.08
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 1:46am UTC
Category: Grooving Inserts
