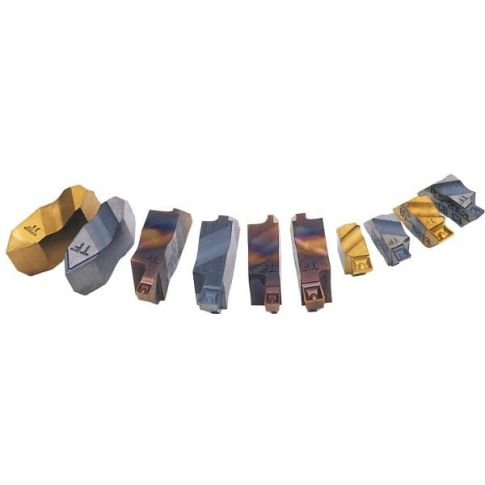

Grooving Insert: FLG3189 GP3, Solid Carbide MPN:563889LJ5R
Grooving Insert: FLG3189 GP3, Solid Carbide MPN:563889LJ5R is available to buy in increments of 10
Grooving Insert: FLG3189 GP3, Solid Carbide
Grooving Insert: FLG3189 GP3, Solid Carbide TiN Finish, Left Hand, 4.8 mm Cutting Width, 4.57 mm Max Depth, Series Flo-Lock
Product Information
- : 563889LJ5R
- Coating Process: PVD
- Coating/Finish: TiN
- Corner Radius (Decimal Inch): 0.0200 to 0.0250
- Cutting Height (Decimal Inch): 0.3440
- Cutting Tool Application: Grooving
- Cutting Width (Decimal Inch): 0.1890
- Cutting Width (mm): 4.80
- Full Radius: No
- Gage Diameter (Decimal Inch): 0.3750
- Gage Diameter (Inch): 3/8
- Insert Hand: Left Hand
- Insert Material: Solid Carbide
- Insert Size: 3189
- Insert Style: FLG
- Lead Angle: 3
- Manufacturer Grade: GP3
- Material Grade: Micrograin
- Maximum Corner Radius (Decimal Inch): 0.0250
- Maximum Depth of Cut (Decimal Inch): 0.1799
- Maximum Depth of Cut (mm): 4.57
- Maximum Depth of Cut Range (Decimal Inch): 0.1500 to 0.2000
- Maximum Depth of Cut Range (mm): 4.00 to 5.00
- Minimum Corner Radius (Decimal Inch): 0.0200
- Multi-Use Tool: No
- Overall Width (Decimal Inch - 4 Decimals): 0.1950
- Rake Angle: 55.00
- Series: Flo-Lock
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: Yes
- Country of Origin: US, United States
- TAA Compliant: Yes
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.24
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 2:26am UTC
Category: Grooving Inserts
