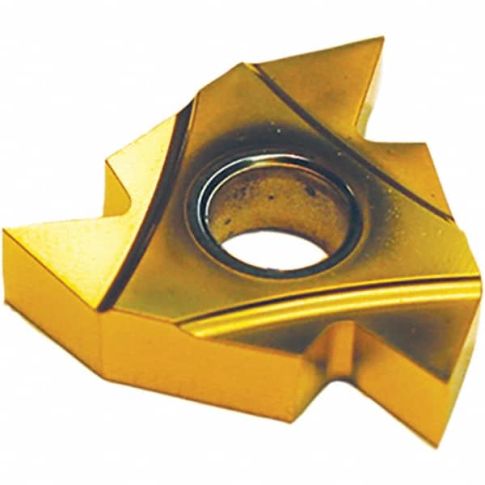

Laydown Threading Insert: L43NV AC50C, Solid Carbide MPN:0115040AC50C
Laydown Threading Insert: L43NV AC50C, Solid Carbide MPN:0115040AC50C is available to buy in increments of 10
Laydown Threading Insert: L43NV AC50C, Solid Carbide
Laydown Threading Insert: L43NV AC50C, Solid Carbide AlTiN Finish, External 60degree V Thread, 8-48 TPI, 1/2" Inscribed Circle, 0.189" Thick
Product Information
- : 0115040AC50C
- Coating Process: PVD
- Coating/Finish: Coated
- Corner Radius (Decimal Inch): 0.0060
- Included Angle: 60
- Inscribed Circle (Decimal Inch): 0.5000
- Inscribed Circle (Inch): 1/2
- Insert Material: Solid Carbide
- Insert Size Code: 43
- Insert Style: L43
- Manufacturer Grade: AC50C
- Material Grade: Micrograin
- Number of Teeth Per Side: True
- Primary Workpiece Material: Cast Iron; Steel
- Primary Workpiece Material Code: K; P
- Series: Laydown
- Thickness (Decimal Inch - 4 Decimals): 0.1890
- Thread Type: External
- Threads Per Inch: 8-48
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: Yes
- Country of Origin: US, United States
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Weight: 1.00
- Prohibited States: AK,HI,PR
Product info last updated on April 4, 2024 2:10am UTC
Category: Threading and Thread Mill Inserts
