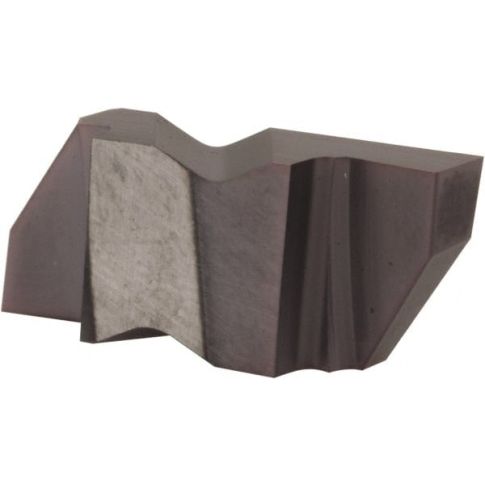

Grooving Insert: FLG0.375CB AC3, Solid Carbide MPN:563688PRAC3R
Grooving Insert: FLG0.375CB AC3, Solid Carbide MPN:563688PRAC3R is available to buy in increments of 10
Grooving Insert: FLG0.375CB AC3, Solid Carbide
Grooving Insert: FLG0.375CB AC3, Solid Carbide AlTiN Finish, Right Hand, 0.0882" Cutting Width, 0.18" Max Depth, Series Flo-Lock
Product Information
- : 563688PRAC3R
- Chip Breaker: CB
- Coating Process: PVD
- Coating/Finish: AlTiN
- Corner Radius (Decimal Inch): 0.0050 to 0.0100
- Cutting Height (Decimal Inch): 0.1800
- Cutting Tool Application: Grooving
- Cutting Width (Decimal Inch): 0.0882
- Full Radius: No
- Gage Diameter (Decimal Inch): 0.3750
- Insert Hand: Right Hand
- Insert Holding Method: Clamp
- Insert Material: Solid Carbide
- Insert Size: 0.375
- Insert Size Code: 3088CB
- Insert Style: FLG
- Iso Code: FLG-3088R-CB
- Lead Angle: 3
- Manufacturer Grade: AC3
- Manufacturers Catalog Number: False
- Material Grade: C2; C3
- Maximum Corner Radius (Decimal Inch): 0.0100
- Maximum Depth of Cut (Decimal Inch): 0.1800
- Maximum Depth of Cut Range (Decimal Inch): 0.1500 to 0.2000
- Minimum Corner Radius (Decimal Inch): 0.0050
- Multi-Use Tool: No
- Overall Width (Decimal Inch - 4 Decimals): 0.1950
- Primary Workpiece Material: Cast Iron; Non-Ferrous Metal; Stainless Steel
- Rake: Neutral
- Rake Angle: 0.00
- Series: Flo-Lock
- Single Or Double End: Double
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: US, United States
- TAA Compliant: Yes
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.20
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 5:58am UTC
Category: Grooving Inserts
