Laydown Threading Insert: L43-425 INT AC222F, Solid Carbide MPN:09158AC22F
Laydown Threading Insert: L43-425 INT AC222F, Solid Carbide MPN:09158AC22F is available to buy in increments of 10

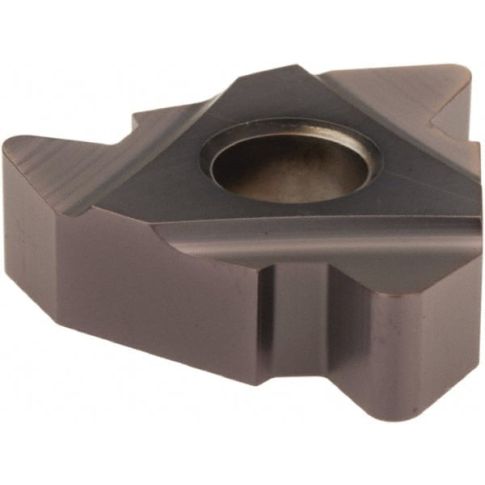

Laydown Threading Insert: L43-425 INT AC222F, Solid Carbide
Laydown Threading Insert: L43-425 INT AC222F, Solid Carbide AlTiN Finish, Right Hand Internal API Thread, 4 TPI, 1/2" Inscribed Circle, 0.187" Thick
Product Information
- : 09158AC22F
- Chipbreaker: A
- Coating Process: PVD
- Coating/Finish: AlTiN
- Corner Radius (Decimal Inch): 0.0250
- Hole Diameter (Decimal Inch): 0.2030
- Inscribed Circle (Decimal Inch): 0.5000
- Inscribed Circle (Inch): 1/2
- Insert Hand: Right Hand
- Insert Material: Solid Carbide
- Insert Style: L43
- Manufacturer Grade: AC22
- Material Grade: Micrograin
- Pitch (mm): 1.00
- Thickness (Decimal Inch - 4 Decimals): 0.1870
- Thread Standard: API
- Thread Type: Internal
- Threads Per Inch: 4
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: US, United States
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Length: 0.50
- Package Width: 0.50
- Package Height: 1.00
- Package Weight: 1.00
- Prohibited States: AK,HI,PR
Product info last updated on April 4, 2024 5:28am UTC
Category: Threading and Thread Mill Inserts
