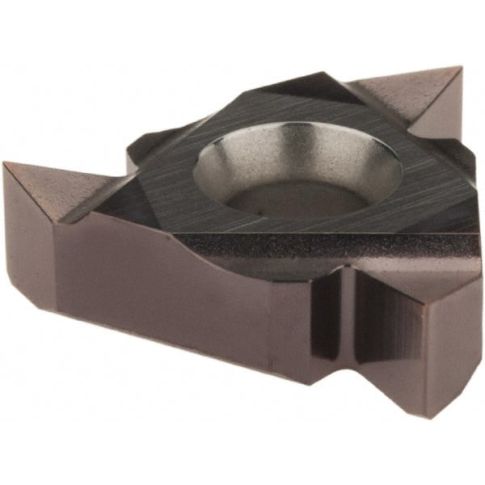

Laydown Threading Insert: 16IL AG60 AC22A, Solid Carbide MPN:5064800AC22A
Laydown Threading Insert: 16IL AG60 AC22A, Solid Carbide MPN:5064800AC22A is available to buy in increments of 5
Laydown Threading Insert: 16IL AG60 AC22A, Solid Carbide
Laydown Threading Insert: 16IL AG60 AC22A, Solid Carbide AlTiN Finish, Left Hand Internal Partial Profile 60degree Thread, 8-48 TPI, 3/8" Inscribed Circle, 1/8" Thick
Product Information
- : 5064800AC22A
- Chipbreaker: A2
- Coating Process: PVD
- Coating/Finish: AlTiN
- Corner Radius (Decimal Inch): 0.0030
- Cutting Edge to Theoretical Edge Length (Decimal Inch): 0.0700
- Hole Diameter (Decimal Inch): 0.1500
- Inscribed Circle (Decimal Inch): 0.3750
- Inscribed Circle (Inch): 3/8
- Insert Hand: Left Hand
- Insert Material: Solid Carbide
- Insert Style: 16NL
- Manufacturer Grade: AC22
- Material Grade: Submicron
- Pitch (mm): 1.00
- Thickness (Decimal Inch - 4 Decimals): 0.1250
- Thread Type: Internal
- Threads Per Inch: 8-48
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: IL, Israel
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Length: 0.50
- Package Width: 0.50
- Package Height: 1.00
- Package Weight: 1.00
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 5:58am UTC
Category: Threading and Thread Mill Inserts
