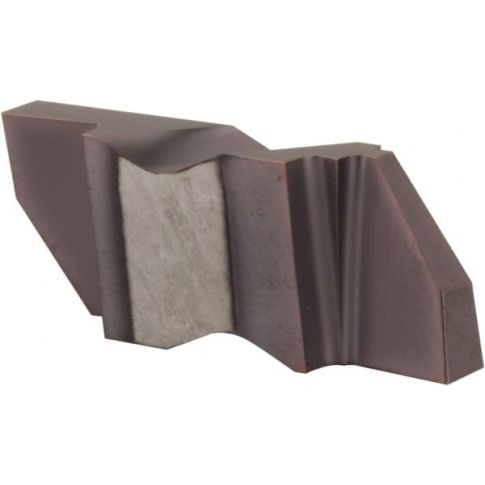

Grooving Insert: FLG0.375CB AC3, Solid Carbide MPN:563889PLAC3R
Grooving Insert: FLG0.375CB AC3, Solid Carbide MPN:563889PLAC3R is available to buy in increments of 10
Grooving Insert: FLG0.375CB AC3, Solid Carbide
Grooving Insert: FLG0.375CB AC3, Solid Carbide AlTiN Finish, Left Hand, 0.189" Cutting Width, 0.18" Max Depth, Series Flo-Lock
Product Information
- : 563889PLAC3R
- Chip Breaker: CB
- Coating Process: PVD
- Coating/Finish: AlTiN
- Corner Radius (Decimal Inch): 0.0200 to 0.0250
- Cutting Height (Decimal Inch): 0.1800
- Cutting Width (Decimal Inch): 0.1890
- Full Radius: No
- Gage Diameter (Decimal Inch): 0.3750
- Insert Hand: Left Hand
- Insert Holding Method: Clamp
- Insert Material: Solid Carbide
- Insert Size: 0.375
- Insert Style: FLG
- Lead Angle: 3
- Manufacturer Grade: AC3
- Material Grade: C2; C3
- Maximum Corner Radius (Decimal Inch): 0.0250
- Maximum Depth of Cut (Decimal Inch): 0.1800
- Maximum Depth of Cut Range (Decimal Inch): 0.1500 to 0.2000
- Minimum Corner Radius (Decimal Inch): 0.0200
- Msc/Manufacturer Number: False
- Multi-Use Tool: No
- Overall Width (Decimal Inch - 4 Decimals): 0.1950
- Rake: Neutral
- Rake Angle: 0.00
- Series: Flo-Lock
- Single Or Double End: Double
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: US, United States
- TAA Compliant: Yes
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Length: 2.25
- Package Width: 5.50
- Package Height: 0.50
- Package Weight: 0.20
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 1:05am UTC
Category: Grooving Inserts
