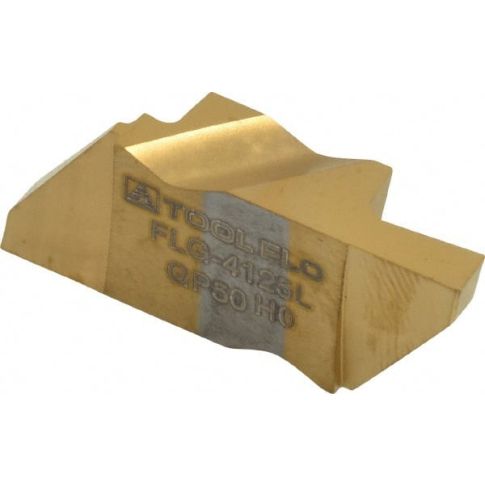

Grooving Insert: FLG4125 GP50, Solid Carbide MPN:564825LN4C
Grooving Insert: FLG4125 GP50, Solid Carbide MPN:564825LN4C is available to buy in increments of 10
Grooving Insert: FLG4125 GP50, Solid Carbide
Grooving Insert: FLG4125 GP50, Solid Carbide TiN Finish, Left Hand, 3.18 mm Cutting Width, 6.35 mm Max Depth, Series Flo-Lock
Product Information
- : 564825LN4C
- Coating Process: PVD
- Coating/Finish: TiN
- Corner Radius (Decimal Inch): 0.0050 to 0.0100
- Cutting Height (Decimal Inch): 0.4530
- Cutting Tool Application: Grooving
- Cutting Width (Decimal Inch): 0.1252
- Cutting Width (mm): 3.18
- Full Radius: No
- Gage Diameter (Decimal Inch): 0.3750
- Gage Diameter (Inch): 3/8
- Insert Hand: Left Hand
- Insert Material: Solid Carbide
- Insert Size: 4125
- Insert Size Code: 4125
- Insert Style: FLG
- Iso Code: FLG-4125L
- Lead Angle: 3
- Manufacturer Grade: GP50
- Material Grade: C5; C6
- Maximum Corner Radius (Decimal Inch): 0.0100
- Maximum Depth of Cut (Decimal Inch): 0.2500
- Maximum Depth of Cut (mm): 6.35
- Maximum Depth of Cut Range (Decimal Inch): 0.2000 to 0.3000
- Maximum Depth of Cut Range (mm): 5.00 to 10.00
- Minimum Corner Radius (Decimal Inch): 0.0050
- Multi-Use Tool: No
- Overall Width (Decimal Inch - 4 Decimals): 0.2550
- Rake: Positive
- Rake Angle: 55.00
- Secondary Workpiece Material: Steel
- Series: Flo-Lock
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Country of Origin: US, United States
- TAA Compliant: Yes
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.50
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 6:43am UTC
Category: Grooving Inserts
