Grooving Insert: FLG3062 AC3, Solid Carbide MPN:563662LAC3R
Grooving Insert: FLG3062 AC3, Solid Carbide MPN:563662LAC3R is available to buy in increments of 10

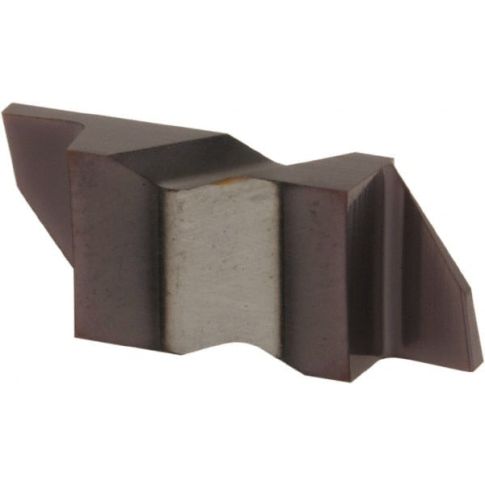

Grooving Insert: FLG3062 AC3, Solid Carbide
Grooving Insert: FLG3062 AC3, Solid Carbide AlTiN Finish, Left Hand, 0.062" Cutting Width, 0.12" Max Depth, Series Flo-Lock
Product Information
- : 563662LAC3R
- Coating Process: PVD
- Coating/Finish: AlTiN
- Corner Radius (Decimal Inch): 0.0050 to 0.0100
- Cutting Height (Decimal Inch): 0.3440
- Cutting Tool Application: Grooving
- Cutting Width (Decimal Inch): 0.0620
- Full Radius: No
- Insert Hand: Left Hand
- Insert Holding Method: Clamp
- Insert Material: Solid Carbide
- Insert Seat Size: 3
- Insert Size: 3062
- Insert Size Code: 3062
- Insert Style: FLG
- Iso Code: FLG-3062L
- Lead Angle: 0
- Manufacturer Grade: AC3
- Manufacturers Catalog Number: False
- Material Grade: C2; C3
- Maximum Corner Radius (Decimal Inch): 0.0100
- Maximum Depth of Cut (Decimal Inch): 0.1200
- Maximum Depth of Cut Range (Decimal Inch): 0.1000 to 0.1500
- Minimum Corner Radius (Decimal Inch): 0.0050
- Multi-Use Tool: No
- Primary Workpiece Material: Cast Iron; Non-Ferrous Metal; Stainless Steel
- Rake: Neutral
- Series: Flo-Lock
- Single Or Double End: Double
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Country of Origin: US, United States
- TAA Compliant: Yes
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.05
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 4:35am UTC
Category: Grooving Inserts
