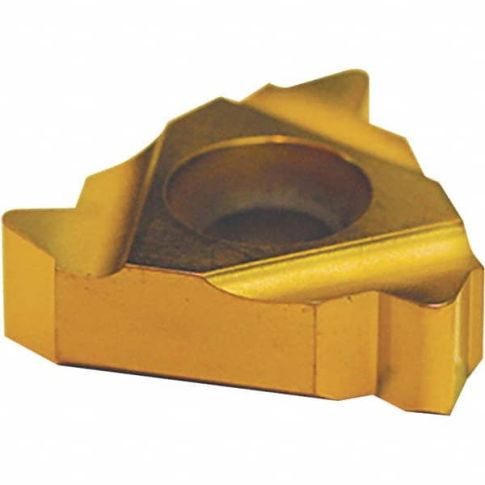

Laydown Threading Insert: 22ER530 AC22F, Solid Carbide MPN:5101300AC22F
Laydown Threading Insert: 22ER530 AC22F, Solid Carbide MPN:5101300AC22F is available to buy in increments of 10
Laydown Threading Insert: 22ER530 AC22F, Solid Carbide
Laydown Threading Insert: 22ER530 AC22F, Solid Carbide AlTiN Finish, Right Hand External API Rotary Shoulder Connections Thread, 5 TPI, 1/2" Inscribed Circle
Product Information
- : 5101300AC22F
- Coating Process: PVD
- Coating/Finish: Coated
- Cutting Edge to Theoretical Edge Length (Decimal Inch): 0.0800
- Face of Insert to Tip Centerline (Decimal Inch): 0.1000
- Included Angle: 60
- Inscribed Circle (Decimal Inch): 0.5000
- Inscribed Circle (Inch): 1/2
- Insert Hand: Right Hand
- Insert Material: Solid Carbide
- Insert Size Code: 22
- Insert Style: 22ER
- Manufacturer Grade: AC22F
- Material Grade: Micrograin
- Number of Teeth Per Side: True
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: H; K; M; N; P; S
- Series: Laydown
- Thread Standard: API Rotary Shoulder Connections
- Thread Type: External
- Threads Per Inch: 5
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: Yes
- Country of Origin: US, United States
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
- Prohibited States: AK,HI,PR
Product info last updated on July 1, 2024 12:46am UTC
Category: Threading and Thread Mill Inserts
