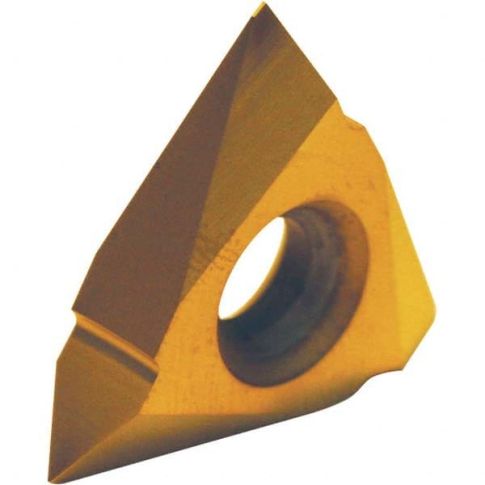

On-Edge Threading Insert: 60 ° MPN:0111000AC3R
On-Edge Threading Insert: 60 ° MPN:0111000AC3R is available to buy in increments of 10
On-Edge Threading Insert: 60 ° V, External & Internal, Neutral Hand
On-Edge Threading Insert: 60 degree V, External & Internal, Neutral Hand 8-36 External TPI, 8-36 Internal TPI, 0.375" IC, AlTiN Finish
Product Information
- : 0111000AC3R
- Coating Process: PVD
- Coating/Finish: AlTiN
- Corner Radius (Decimal Inch): 0.0030
- Cutting Direction: Neutral
- External Threads Per Inch: 8-36
- Hole Shape: Countersunk
- Inscribed Circle (Decimal Inch): 0.3750
- Insert Material: Solid Carbide
- Insert Size Code: 32
- Insert Style: TPMC
- Internal Threads Per Inch: 8-36
- Manufacturer Grade: AC3R
- Maximum Corner Radius (Decimal Inch): 0.0050
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: H; K; M; N; P; S
- Rake: Positive
- Rake Angle: 5
- Series: On-Edge
- Thickness (Decimal Inch - 4 Decimals): 0.1270
- Thread Standard: 60 Degree V
- Thread Type: External; Internal
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Country of Origin: US, United States
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 4:35am UTC
Category: Threading and Thread Mill Inserts
