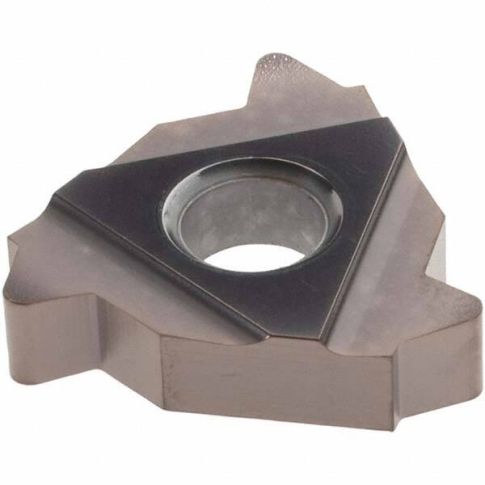

Laydown Threading Insert: L53428 AC50F, Solid Carbide MPN:10478AC50F
Laydown Threading Insert: L53428 AC50F, Solid Carbide MPN:10478AC50F is available to buy in increments of 10
Laydown Threading Insert: L53428 AC50F, Solid Carbide
Laydown Threading Insert: L53428 AC50F, Solid Carbide AlTiN Finish, Internal API Rotary Shoulder Connections Thread, 4 TPI, 5/8" Inscribed Circle, 0.189" Thick
Product Information
- : 10478AC50F
- Coating Process: PVD
- Coating/Finish: Coated
- Corner Radius (Decimal Inch): 0.0380
- Included Angle: 60
- Inscribed Circle (Decimal Inch): 0.6250
- Inscribed Circle (Inch): 5/8
- Insert Material: Solid Carbide
- Insert Size Code: 53
- Insert Style: L53
- Manufacturer Grade: AC50F
- Material Grade: Micrograin
- Number of Teeth Per Side: True
- Primary Workpiece Material: Cast Iron; Steel
- Primary Workpiece Material Code: K; P
- Series: Laydown
- Thickness (Decimal Inch - 4 Decimals): 0.1890
- Thread Standard: API Rotary Shoulder Connections
- Thread Type: Internal
- Threads Per Inch: 4
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: Yes
- Country of Origin: US, United States
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
- Prohibited States: AK,HI,PR
Product info last updated on July 1, 2024 12:39am UTC
Category: Threading and Thread Mill Inserts
