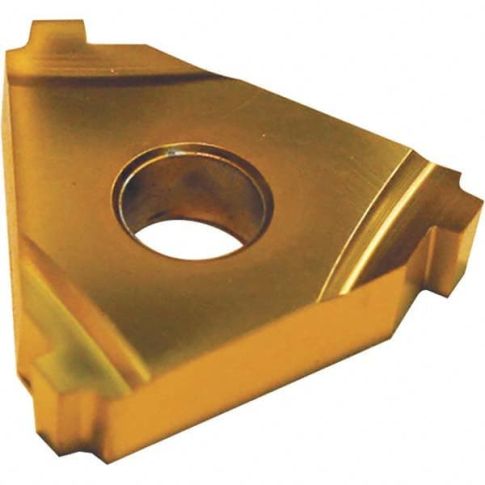

Laydown Threading Insert: L435B75FC AC50D, Solid Carbide MPN:16158FAC50D
Laydown Threading Insert: L435B75FC AC50D, Solid Carbide MPN:16158FAC50D is available to buy in increments of 10
Laydown Threading Insert: L435B75FC AC50D, Solid Carbide
Laydown Threading Insert: L435B75FC AC50D, Solid Carbide AlTiN Finish, Internal API Buttress Thread, 5 TPI, 1/2" Inscribed Circle, 0.189" Thick
Product Information
- : 16158FAC50D
- Coating Process: PVD
- Coating/Finish: Coated
- Included Angle: 60
- Inscribed Circle (Decimal Inch): 0.5000
- Inscribed Circle (Inch): 1/2
- Insert Material: Solid Carbide
- Insert Size Code: 43
- Insert Style: L43
- Manufacturer Grade: AC50D
- Material Grade: Micrograin
- Number of Teeth Per Side: True
- Primary Workpiece Material: Cast Iron; Steel
- Primary Workpiece Material Code: K; P
- Series: Laydown
- Thickness (Decimal Inch - 4 Decimals): 0.1890
- Thread Standard: API Buttress
- Thread Type: Internal
- Threads Per Inch: 5
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: Yes
- Country of Origin: US, United States
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
- Prohibited States: AK,HI,PR
Related ASINs: B074SYHJP8, B074T1F4Y1, B074SX989W
Product info last updated on July 1, 2024 12:25am UTC Category: Threading and Thread Mill Inserts
