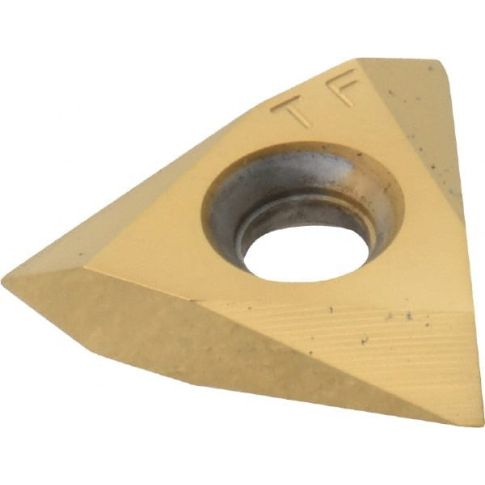

On-Edge Threading Insert: 60 ° MPN:0141000N4C
On-Edge Threading Insert: 60 ° MPN:0141000N4C is available to buy in increments of 10
On-Edge Threading Insert: 60 ° V, Internal, Neutral Hand
On-Edge Threading Insert: 60 degree V, Internal, Neutral Hand 5-24 Internal TPI, 1/2" IC, TiN Finish
Product Information
- : 0141000N4C
- Coating Classification: PVD
- Coating Process: PVD
- Coating/Finish: TiN
- Corner Radius (Decimal Inch): 0.0030
- Cutting Direction: Neutral
- Hole Shape: Countersunk
- Inscribed Circle (Decimal Inch): 0.5000
- Inscribed Circle (Inch): 1/2
- Insert Material: Solid Carbide
- Insert Size Code: 43
- Insert Style: TNMC
- Internal Threads Per Inch: 5-24
- Manufacturer Grade: GP50
- Material Grade: C4/C8
- Maximum Corner Radius (Decimal Inch): 0.0050
- Primary Workpiece Material: Cast Iron; Steel
- Primary Workpiece Material Code: K; P
- Rake: Neutral
- Rake Angle: 0
- Series: On-Edge
- Thickness (Decimal Inch - 4 Decimals): 0.1890
- Thread Standard: 60 Degree V
- Thread Type: Internal
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: Yes
- Country of Origin: US, United States
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.24
- Prohibited States: AK,HI,PR
Product info last updated on July 3, 2024 11:36am UTC
Category: Threading and Thread Mill Inserts
