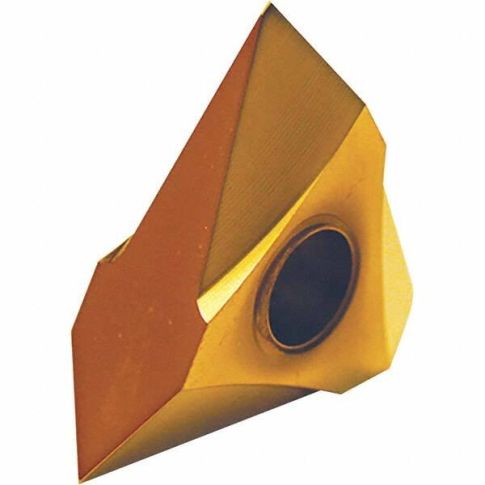

On-Edge Threading Insert: 60 ° MPN:0139000AC50C
On-Edge Threading Insert: 60 ° MPN:0139000AC50C is available to buy in increments of 1
On-Edge Threading Insert: 60 ° V, External & Internal, Neutral Hand
On-Edge Threading Insert: 60 degree V, External & Internal, Neutral Hand 5-24 External TPI, 5-24 Internal TPI, 0.5" IC, AlTiN Finish
Product Information
- : 0139000AC50C
- Coating Process: PVD
- Coating/Finish: AlTiN
- Corner Radius (Decimal Inch): 0.0050
- Cutting Direction: Neutral
- External Threads Per Inch: 5-24
- Hole Shape: Cylindrical
- Inscribed Circle (Decimal Inch): 0.5000
- Insert Material: Solid Carbide
- Insert Size Code: 43
- Insert Style: TNMA
- Internal Threads Per Inch: 5-24
- Manufacturer Grade: AC50C
- Maximum Corner Radius (Decimal Inch): 0.0070
- Primary Workpiece Material: Cast Iron; Steel
- Primary Workpiece Material Code: K; P
- Rake: Neutral
- Series: On-Edge
- Thickness (Decimal Inch - 4 Decimals): 0.1890
- Thread Standard: 60 degrees V
- Thread Type: External; Internal
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: Yes
- Country of Origin: US, United States
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Weight: 1.00
- Prohibited States: AK,HI,PR
Product info last updated on July 31, 2024 3:17pm UTC
Category: Threading and Thread Mill Inserts
