Laydown Threading Insert: 16ER 10UN AC22A , Solid Carbide MPN:5006610AC22A
Laydown Threading Insert: 16ER 10UN AC22A , Solid Carbide MPN:5006610AC22A is available to buy in increments of 5

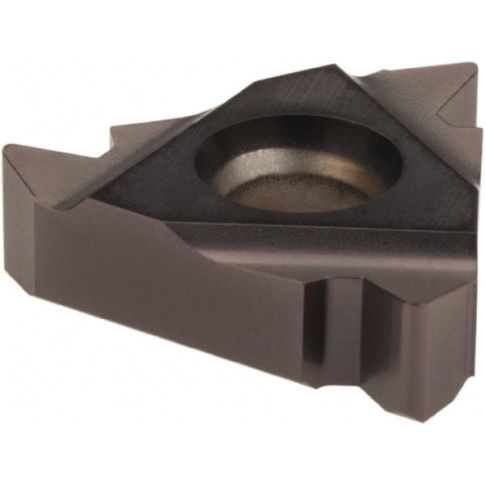

Laydown Threading Insert: 16ER 10UN AC22A , Solid Carbide
Laydown Threading Insert: 16ER 10UN AC22A , Solid Carbide AlTiN Finish, Right Hand External UN Thread, 10 TPI, 3/8" Inscribed Circle, 0.145" Thick
Product Information
- : 5006610AC22A
- Chipbreaker: A2
- Coating Process: PVD
- Coating/Finish: Coated
- Corner Radius (Decimal Inch): 0.0120
- Cutting Edge to Theoretical Edge Length (Decimal Inch): 0.0600
- Hole Diameter (Decimal Inch): 0.1500
- Included Angle: 60
- Inscribed Circle (Decimal Inch): 0.3750
- Inscribed Circle (Inch): 3/8
- Insert Hand: Right Hand
- Insert Material: Solid Carbide
- Insert Size Code: 16
- Insert Style: 16ER
- Manufacturer Grade: AC22
- Material Grade: Submicron
- Pitch (mm): 1.00
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: H; K; M; N; P; S
- Series: Laydown
- Thickness (Decimal Inch - 4 Decimals): 0.1450
- Thread Standard: UN
- Thread Type: External
- Threads Per Inch: 10
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Country of Origin: IL, Israel
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Weight: 1.00
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 4:35am UTC
Category: Threading and Thread Mill Inserts
