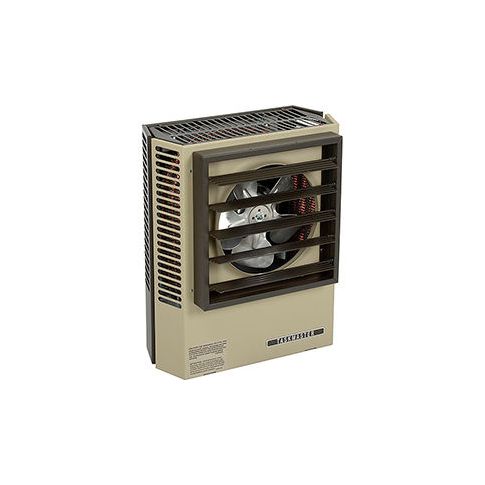

TPI Unit Heater Horizontal or Vertical Discharge P3P5103CA1N - 3300W 480V 3 PH P3P5103CA1N
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-425B45
TPI Unit Heater Horizontal or Vertical Discharge P3P5103CA1N - 3300W 480V 3 PH P3P5103CA1N
This item is NOT returnable.
This item is NOT cancellable.
HORIZONTAL OR VERTICAL DISCHARGE FAN FORCED SUSPENDED UNIT HEATERS
3,300 Watt Heater ? 480V
Suspended unit heaters can be installed for either vertical or horizontal discharge applications. Discharge fan forced heaters have an 18 gauge steel cabinet housing with a long-lasting powder coat finish. These fan forced heaters feature spiral fin steel element with continuously brazed steel fins that allow side draw through airflow. Fan forced heaters include individually adjustable louvers for directional control of air flow up to 15° from straight horizontal position. The automatic reset limit de-energizes these heaters if over-heating occurs. Fan over-ride purges electric heaters of residual heat at shutdown. Control compartment housing has a hinged and latched access door that allows access to wiring for installation and maintenance. Suspended unit heaters feature a totally enclosed 1-speed permanently lubricated thermally protected motor with unit bearings. UL approved. 1 Year Limited Warranty.
3,300 Watt Heater ? 480V
Suspended unit heaters can be installed for either vertical or horizontal discharge applications. Discharge fan forced heaters have an 18 gauge steel cabinet housing with a long-lasting powder coat finish. These fan forced heaters feature spiral fin steel element with continuously brazed steel fins that allow side draw through airflow. Fan forced heaters include individually adjustable louvers for directional control of air flow up to 15° from straight horizontal position. The automatic reset limit de-energizes these heaters if over-heating occurs. Fan over-ride purges electric heaters of residual heat at shutdown. Control compartment housing has a hinged and latched access door that allows access to wiring for installation and maintenance. Suspended unit heaters feature a totally enclosed 1-speed permanently lubricated thermally protected motor with unit bearings. UL approved. 1 Year Limited Warranty.
Product Specifications
- BRANDTPI
- WIDTH INCHES14-1/2
- DEPTH INCHES6-1/2
- HEIGHT INCHES17-3/4
- WEIGHT LBS25
- COLORGray Powder Coat
- ASSEMBLYAssembled
- CONSTRUCTIONSteel
- BTU HIGH11200
- CFM HIGH400
- VOLTAGE480
- PHASE3
- WATTS HIGH3300
- KILOWATTS3.3
- DISCHARGEHorizontal or Vertical
- MANUFACTURER PART NUMBERP3P5103CA1N
- AMPS HIGH4
Additional Information
- UPC: 686334645126
- UNSPSC: 40101800
- Brand: Tpi Industrial
- Color: Gray
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: TN
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 17.75
- Package Width: 6.50
- Package Height: 14.47
- Package Weight: 25.00
Product info last updated on July 16, 2024 6:10pm UTC
Category: Electric Heaters
