Electronic Lock Brushed Chrome 12 Button MPN:DL5300 US26D

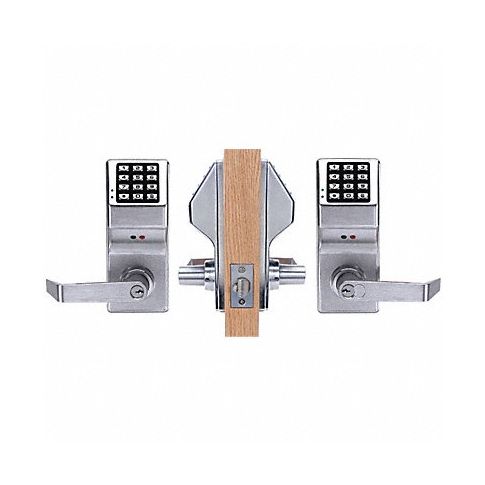

The TRILOGY electronic keyless lock helps eliminate the problem of lost keys and rekeying costs. Replaces a standard knob set. Works in conjunction with panic bars from Von Duprin, Yale, Sargent, or Adams Rite® on glass/narrow-stile doors. This double-side proximity lock has direction-specific access that can be assigned, per user, for either side of the door.

Technical Specifications

• Item Electronic Keyless Lock
• Function Entry and Egress with Key Override
• Access Method Keypad
• Mounting Style Cylindrical
• Lock Material Zinc Alloy
• Finish Satin Chrome
• Series DL5300
• Handle Type Lever
• Door Thickness 1-3/8 in to 1-7/8 in
• Key Override Options Standard SC1 Keyway
• Hand Nonhanded
• Outside Height 8 in
• Outside Width 3 1/4 in
• Backset 2-3/4 in
• Number of Keys 0
• Power Source (5) AA Batteries
• Battery Life 100,000 Cycles
• Operating Temp. Range -31 Degrees to 151 Degrees F
• Event Audit Trail 40,000
• Max. User Codes 2000
• Fire Rating 3 hr
• Grade 1
• Standards UL Listed
• Weather Resistant Yes
• Electrical/Mechanical Electrical
• Ligature Resistant No

Manufacturer Details

• Manufacturer: Trilogy
• Condensed Mfg Number: DL5300US26D
• MPN: DL5300 US26D

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: DO
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8301406030
• GDS Category Name: Electronic Keyless Access Control Locks
• GDS Family Name: Keyless Access Locks
• GDS Segment Name: Hardware
• UNSPSC: 46171619
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Surveillance and detection equipment
• UNSPSC Commodity ID: 19
• UNSPSC Commodity Name: Security or access control systems
• UNSPSC Family ID: 17
• UNSPSC Family Name: Security surveillance and detection
• UNSPSC Segment ID: 46
• UNSPSC Segment Name: Defense and Law Enforcement and Security and Safety Equipment and Supplies

Shipping Details

• Not For Sale In: HI AK PR
