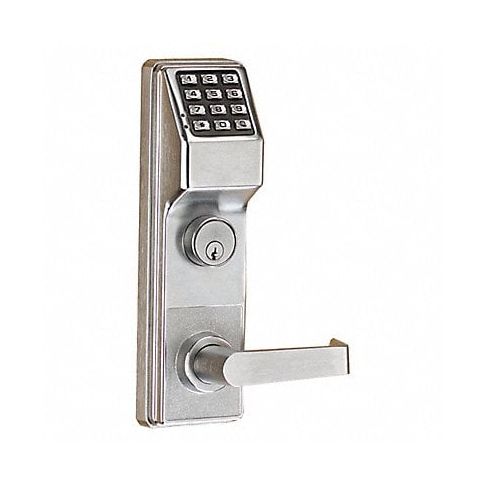

Electronic Keyless Lock Left Hand MPN:DL2700CRL US26D

Technical Specifications

• Item Electronic Keyless Lock
• Function Classroom with Key Override
• Access Method Keypad
• Mounting Style Mortise
• Lock Material Zinc Alloy
• Finish Brushed Chrome
• Series Trilogy
• Handle Type Lever
• Door Thickness 1-3/8 in to 1-7/8 in
• Key Override Options Schlage "C" Keyway (Included)
• Hand Left
• Network Interface None
• Outside Height 11 in
• Outside Width 3 1/4 in
• Outside Depth 3 in
• Inside Height 8 1/4 in
• Inside Width 3 in
• Inside Depth 3 1/32 in
• Latch Length 1/2 in
• Latch Front Size 1-1/8 in x 2-1/4 in
• Backset 2-3/4 in
• Keypad Material Metal
• Number of Keys 12
• Timed Entry Allowance Free Egress At All Times
• Power Source (5) AA Batteries
• Battery Life 100,000 Cycles
• Operating Temp. Range -31 Degrees to 151 Degrees F
• Event Audit Trail No
• Max. User Codes 100
• Max. Proximity Range At Lock
• Fire Rating 3 hr
• ADA Compliant Yes
• Grade 1
• IP Rating Not Rated
• Standards UL Listed
• Weather Resistant Yes
• For Use With Various Door Types
• Includes Mounting Hardware
• Electrical/Mechanical Electrical
• Ligature Resistant No
• Location Type Commercial, Educational, Healthcare, Industrial, Institutional
• Lockset Finish Satin Chrome
• Lockset Fire Rating 3 hr
• Style Standard

Manufacturer Details

• Manufacturer: Trilogy
• Condensed Mfg Number: DL2700CRLUS26D
• MPN: DL2700CRL US26D

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: DO
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8301406060
• GDS Category Name: Electronic Keyless Access Control Locks
• GDS Family Name: Keyless Access Locks
• GDS Segment Name: Hardware
• UNSPSC: 46171503
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Locks and security hardware and accessories
• UNSPSC Commodity ID: 03
• UNSPSC Commodity Name: Lock sets
• UNSPSC Family ID: 17
• UNSPSC Family Name: Security surveillance and detection
• UNSPSC Segment ID: 46
• UNSPSC Segment Name: Defense and Law Enforcement and Security and Safety Equipment and Supplies

Shipping Details

• Not For Sale In: HI AK PR
