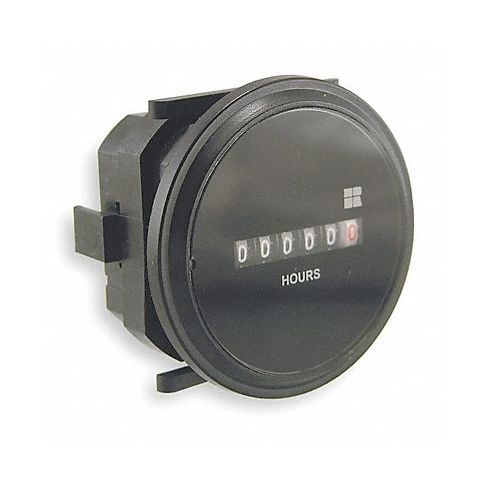

Hour Meter AC Quartz Flush Round 6 Digit MPN:722-0003

Redington Hour Meters and Counters
722/732 Series
• Sealed black polymer case Hours white on black; 10ths black on white 6-digit display has 0.125" characters 1/4" (6.3mm) spade terminals
Reliable quartz accuracy for precise timekeeping and long service life. Accuracy: ±0.02 over entire range. Temp. range: -40° to 185°F. Mount easily with clip or mounting holes. UL and C-UL Recognized and CE Certified. Select models conform to NEMA 4X and 12 when used with proper gasket.

Technical Specifications

• Item Hour Meter
• Display Type Electromechanical
• Time Range 0 to 99999.9
• Bezel Face Size 2.24 in dia
• Bezel Face Shape Round
• Bezel Face Type Flush Mount
• Elapsed Time To 99,999.9
• Operating Voltage 120 to 240V AC
• Hz 50/60 Hz
• Number of Digits 6
• Display Units Hours/Tenths
• Bezel To Back Length 1.5 in
• Ambient Temp. Range -40 Degrees to 185 Degrees F
• Material of Construction Black Polymer
• Reset Type Non Resettable
• Temp. Range -40 Degrees to 185 Degrees F
• Fits 2.0 in dia Panel Opening
• Mounting Method Clip
• Terminal Type Spade
• Fits Panel Cut Out 2.00 in dia

Manufacturer Details

• Manufacturer: Trumeter
• Condensed Mfg Number: 7220003
• MPN: 722-0003

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: IN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9107008000
• GDS Category Name: Hour Meters
• GDS Family Name: Counters and Hour Meters
• GDS Segment Name: Electrical
• UNSPSC: 41111902
• UNSPSC Class ID: 19
• UNSPSC Commodity Name: Indicating and recording instruments
• UNSPSC Commodity ID: 02
• UNSPSC Commodity Name: Electronic counters
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
