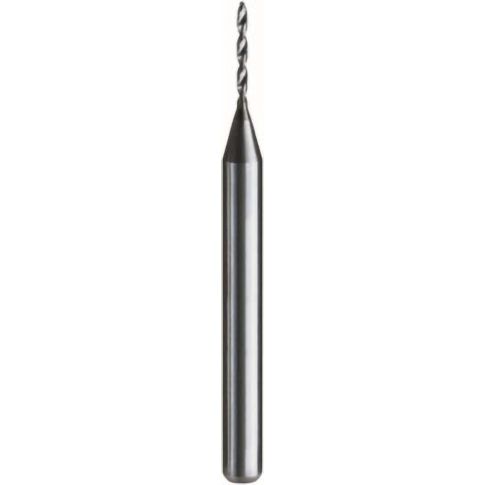

Circuit Board Drill Bits, Drill Bit Size (Inch): 7/64 , Drill Point Angle: 150 , Shank Diameter (Inch): 1/8 , Flute Length (mm): 10.00 MPN:101G278
Circuit Board Drill Bits; Drill Bit Size (Inch): 7/64 ; Drill Point Angle: 150 ; Shank Diameter (Inch): 1/8 ; Flute Length (mm): 10.00 ; Overall Length (Inch): 1-1/2 ; Point Type: Four Facet
Circuit board drill bits are specialized tools designed to create accurate and precise holes in printed circuit boards for electrical connections. This particular model has a size of 7/64 inch, a shank diameter of 1/8 inch, a flute length of 10.00 mm, a drill point angle of 150 degrees, and is made from high-quality material suitable for use on circuit boards. The unique design of the bit ensures smooth and precise holes while reducing vibration and heat generation, making it ideal for applications such as electronics manufacturing, telecommunications, and medical equipment. Overall, the circuit board drill bits offer a reliable and efficient solution to anyone seeking accurate hole drilling in printed circuit boards.
- Circuit Board Drill Bits
- Drill Bit Size (Inch): 7/64
- Drill Point Angle: 150
- Shank Diameter (Inch): 1/8
- Flute Length (mm): 10.00
- Overall Length (Inch): 1-1/2
- Point Type: Four Facet
Product Information
- : 101G278
- Coating/Finish: No Coating
- Drill Bit Diameter Tolerance (mm): 0.000 to -0.010
- Drill Bit Size (Inch): 7/64
- Drill Point Angle: 150
- Flute Length (mm): 10.00
- Overall Length (Inch): 1-1/2
- Point Type: Four Facet
- Series: ST
- Shank Diameter (Inch): 1/8
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: JP, Japan
- TAA Compliant: Yes
- UNSPSC: 23241600
- CA Restricted (Prop 65): Unknown
- Package Weight: 1.00
- Prohibited States: AK,HI,PR
Product info last updated on July 1, 2024 12:01am UTC
Category: Circuit Board Drill Bits
