AmScope B100B-E 2000X High Power Binocular Microscope + USB Camera B100B-E
AmScope B100B-E 2000X High Power Binocular Microscope + USB Camera

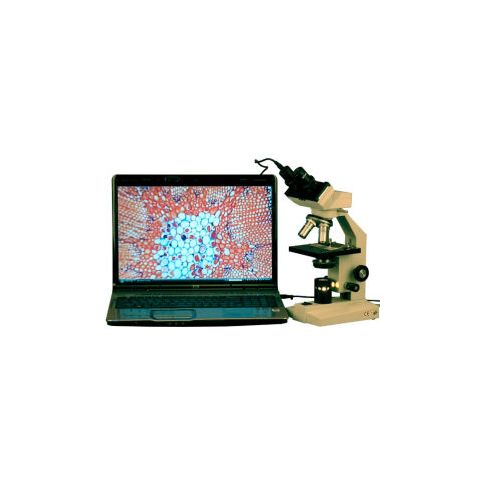

This is a binocular compound microscope with 640x480 pixel USB2.0 camera. The microscope comes with eight magnification settings (40X, 80X, 100X, 200X, 400X, 800X, 1000X & 2000X), coarse & fine focus, and electrical illumination system. The digital camera captures still images and video, and allows you to view a live stream on your PC. The included software for Windows offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. On Mac computers, the camera can be used as a driverless imaging device, compatible with various applications, such as ProScope and Photo Booth. This microscopy system is an ideal instrument for teaching demonstration and biological, bacteriological & pharmaceutical applications.
Features:
This is a binocular compound microscope with 640x480 pixel USB2.0 camera. The microscope comes with eight magnification settings (40X, 80X, 100X, 200X, 400X, 800X, 1000X & 2000X), coarse & fine focus, and electrical illumination system. The digital camera captures still images and video, and allows you to view a live stream on your PC. The included software for Windows offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. On Mac computers, the camera can be used as a driverless imaging device, compatible with various applications, such as ProScope and Photo Booth. This microscopy system is an ideal instrument for teaching demonstration and biological, bacteriological & pharmaceutical applications.
Features:
- 45-degree Inclined 360-degree Swiveling Sliding Binocular Head
- Large Stage with Stain Resistant Finish
- Separate Coarse Fine Focusing
- Fully Coated Optical System with High Resolution
- Crystal Clear Sharp Images
- High Quality Professional Grade Microscope
- Great for Clinics, Vets, Doctors, or Students
- Eight Levels of Magnification: 40X, 80X, 100X, 200X, 400X, 800X, 1000X & 2000X
- Upward Stage Stopper to Protect Slides and Objectives
- Abbe Condenser with Iris Diaphragm Filters
- Built-In Illumination System
- Focusing Control Knobs on Both Sides
- Four DIN Achromatic Objectives
- Full Optical Glass Elements
- All Metal Mechanical Components
- Precise Ground Glass Lenses
- Adjustable Interpupillary Distance
- Adjustable Diopter on Ocular
- Solid Metal Frame Construction with Stain Resistant Enamel Finish
- Spare Bulb, Fuse and a Bottle of Immersion Oil Included
- Manufactured under ISO 9001 Quality Control Standard
- Excellent five (5) year manufacturer warranty
- Nosepiece: quadruple
- Head: 45-degree inclined sliding binocular
- Interpupillary Distance: 2-3/16" - 3-0" (55 - 75mm)
- Wide-field Eyepiece: WF10X/18 & WF20X
- Achromatic Objectives: 4X, 10X, 40X (spring), 100X (spring, oil)
- Stage Dimensions: 4-5/16"x 4-3/4" (110x120mm)
- Abbe Condenser: NA=1.25 with iris diaphragm filter
- Illumination: 20W tungsten bulb
- Power Supply: 110V (220V version, Please contact Customer Support for assistance.58x2.69mm
- Pixel Size: 5.6
- Resolution: .35MP (640x480)
- Frame Rate: 30@640x480
- Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX (Mac software not provided)
- OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10
- Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
Product Specifications
- BRANDAmScope
- MANUFACTURER PART NUMBERB100B-E
- DESCRIPTIONHigh Power Binocular Microscope with USB Camera
- MATERIALMetal
- COLORWhite
- SENSORCMOS
- MAGNIFICATION RANGE40X-2000X
- OPTICSAchromatic
- FIELD VIEWWidefield
- HEAD TYPEBinocular
- OBJECTIVE4X, 10X, 40X, 100X
- EYEPIECE MAGNIFICATION10X
- EYEPIECE23mm
- CAMERA PIXEL0.3MP
- LIGHT SOURCETungsten
- LIGHT POWER20W
- NUMBER OF LIGHT BULBS1
- STAGESingle-layer Stage with Clips
- CONDENSERAbbe-Spiral with Diaphragm
- CONDENSER TYPEBrightfield
- CONDENSER OPTICSNA 1.25
- IRISWith Iris
- POWER SUPPLY110V
- TYPECompound Microscope
- PACKAGE QUANTITY1
- LIMITED WARRANTY5 Years
- APPLICATIONVeterinary, Laboratory, Teaching/Training
Additional Information
- UPC: 013964567977
- UNSPSC: 41111709
- Color: White
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: VE
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 18.00
- Package Width: 12.00
- Package Height: 8.00
- Package Weight: 9.00
