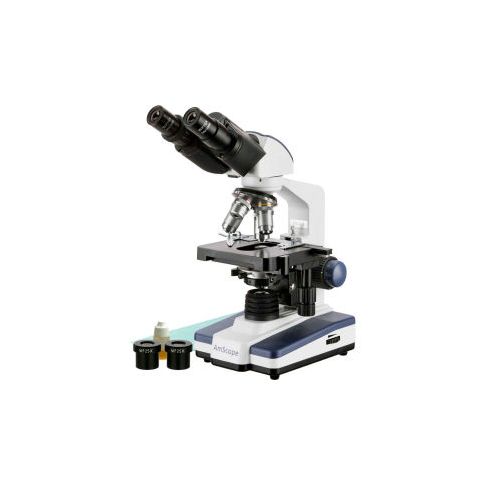

AmScope B120C 40X-2500X LED Lab Binocular Compound Microscope with 3D-Stage B120C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-413M00
AmScope B120C 40X-2500X LED Lab Binocular Compound Microscope with 3D-Stage B120C
AmScope B120C 40X-2500X LED Lab Binocular Compound Microscope with 3D-Stage
AmScope new binocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for teachers and students including those in medical school or with a major in biology. It comes with a Siedentopf binocular head, double layer mechanical stage with course & fine focusing, and LED illumination system. There are six magnification settings. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches.
Features:
AmScope new binocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for teachers and students including those in medical school or with a major in biology. It comes with a Siedentopf binocular head, double layer mechanical stage with course & fine focusing, and LED illumination system. There are six magnification settings. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches.
Features:
- 30° inclined 360° swiveling Siedentopf binocular head
- High quality precise optical glass elements
- Easy to attach a microscope camera or digital imager
- Six magnification settings, 40X, 100X, 250X, 400X, 1000X & 2500X
- Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)
- Two pairs of widefield eyepieces: WF10X and WF25X
- Adjustable interpupillary distance
- Adjustable ocular diopter
- Variable intensity illumination
- Coaxial coarse and fine focus adjustment
- Focusing knobs are on both sides
- Stage upward moving lock protects objectives and slides
- Stain-resistant double layer mechanical stage
- NA1.25 Abbe Condenser with iris diaphragm & filters
- Rack and pinion adjustment condenser
- Eyepieces: widefield, WF10X and WF25X
- Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
- Head: 30° inclined 360° swiveling binocular
- Interpupillary distance: 2-1/8" - 3-1/8" (53mm - 77mm)
- Adjustable ocular diopter
- Nosepiece: revolving quadruple
- Mechanical Stage: 3-D double layer
- Size: 4-5/8" x 5" (118mm x 127mm)
- Travel Range (X-Y): 2-13/16" x 1-3/16" (70mm x 30mm)
- Condenser: NA1.25 Abbe condenser with iris diaphragm
- Illumination: LED light, transmitted, intensity adjustable, GS and CE approved
- Focusing: coaxial coarse & fine knobs on both sides
- Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included
- Dimensions: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm)
Product Specifications
- BRANDAmScope
- MANUFACTURER PART NUMBERB120C
- DESCRIPTIONLED Binocular Compound Microscope with 3D Stage
- MATERIALMetal
- COLORWhite
- MAGNIFICATION RANGE40X-2500X
- OPTICSAchromatic
- FIELD VIEWWidefield
- HEAD TYPEBinocular
- OBJECTIVE4X, 10X, 40X, 100X
- EYEPIECE MAGNIFICATION10X, 25X
- EYEPIECE23mm
- LIGHT SOURCELED
- LIGHT POWER1W
- NUMBER OF LIGHT BULBS1
- STAGETwo-layer Mechanical Stage
- STAGE DIV1.00mm
- CONDENSERAbbe-Rack & Pinion with Diaphragm
- CONDENSER TYPEBrightfield
- CONDENSER OPTICSNA 1.25
- IRISWith Iris
- POWER SUPPLY110V/220V
- TYPECompound Microscope
- PACKAGE QUANTITY1
- LIMITED WARRANTY5 Years
- APPLICATIONVeterinary, Laboratory, Teaching/Training
Additional Information
- UPC: 608729742777
- UNSPSC: 41111709
- Color: White
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: VE
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 18.00
- Package Width: 12.00
- Package Height: 10.00
- Package Weight: 10.00
Product info last updated on May 6, 2024 9:11am UTC
Category: Microscopes
