AmScope B120B-10M 40X-2000X LED Binocular Digital Compound Microscope with 3D Stage and 10MP Camera B120B-10M

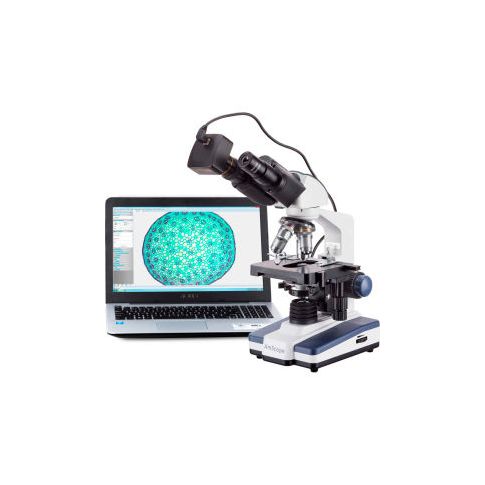

AmScope B120B-10M 40X-2000X LED Binocular Digital Compound Microscope with 3D Stage and 10MP Camera

AmScope new binocular compound microscope with 10MP digital camera is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for a range of people from students in high school to teachers including those with a major in biology, or enrolled in medical school. It comes with a professional Siedentopf binocular head, double layer mechanical stage, course & fine focusing, LED illumination, and a 10MP detachable digital camera. There are eight magnification settings. The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

Microscope Features:

• 30 degree inclined 360 degree swiveling Siedentopf binocular head
• High quality precise optical glass elements
• Easy attachment of microscope cameras or digital imagers
• Eight magnification settings, 40X-80X-100X-200X-400X-800X-1000X-2000X
• Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S, Oil)
• Two pairs of widefield eyepieces: WF10X and WF20X
• Adjustable interpupillary distance
• Adjustable ocular diopter
• Variable intensity illumination
• Coaxial coarse and fine focus adjustment
• Focusing knobs are on both sides of the microscope
• Stage upward moving lock protects objectives and slides
• Stain-resistant double layer mechanical stage
• NA1.25 Abbe Condenser with iris diaphragm & filters
• Rack and pinion adjustment condenser
• Manufactured Under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Factory Warranty

Specifications:

• Eyepieces: widefield, WF10X and WF20X
• Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
• Head: 30 degree inclined 360 degree swiveling binocular
• Interpupillary distance: 2-1/8" - 3-1/8" (53mm - 77mm)
• Adjustable ocular diopter
• Nosepiece: revolving quadruple
• Mechanical Stage: 3-D double layer
  • Size: 4-5/8" x 5" (118mm x 127mm)
  • Travel Range (X-Y): 2-13/16" x 1-3/16" (70mm x 30mm)
• Condenser: NA1.25 Abbe condenser with iris diaphragm
• Illumination: LED light, transmitted, intensity adjustable, GS and CE approved
• Focusing: coaxial coarse & fine knobs on both sides
• Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included
• Dimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm)

Camera Specifications:

• Sensor: Aptina MT9J003
• Sensor Type: CMOS
• Sensor Size: 6.44x4.616mm
• Pixel Size: 1.67
• Resolution: 10.0MP
• Frame Rate: 1.9@3584x2748, 8@1792x1374, 27@896x684
• Sensitivity: 0.31 V/lux-sec
• Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

• OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
• Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
