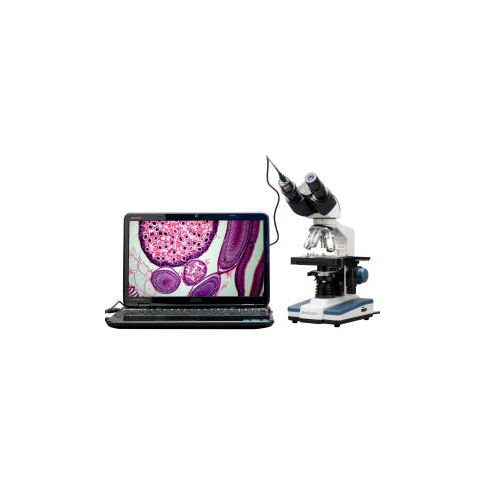

AmScope B120C-E1 40X-2500X LED Digital Binocular Compound Microscope with 3D Stage +1.3MP USB Camera B120C-E1

AmScope B120C-E1 40X-2500X LED Digital Binocular Compound Microscope with 3D Stage +1.3MP USB Camera

AmScope new binocular compound microscope with 1.3MP USB camera is designed for teaching demonstrations, clinical examinations and laboratory applications. It's a perfect microscope for a range of people from professionals, students in high school to teachers including those with a major in biology, or enrolled in medical school. It comes with a professional Siedentopf binocular head, double layer mechanical stage, course & fine focusing, LED illumination, and 1.3MP USB digital camera. There are 6 magnification settings. The digital camera captures still images and video, and allows you to view a live stream on your PC. The included software for Windows offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. On Mac computers, the camera can be used as a driverless imaging device, compatible with various applications, such as ProScope and Photo Booth. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches.

Microscope Features:

• 30° inclined 360° swiveling Siedentopf binocular head
• High quality precise optical glass elements
• Six magnification settings, 40X, 100X, 250X, 400X, 1000X & 2500X
• Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)
• Two pairs of widefield eyepieces: WF10X & WF25X
• Adjustable interpupillary distance
• Adjustable ocular diopter
• Variable intensity illumination
• Coaxial coarse and fine focus adjustment
• Focusing knobs are on both sides of the microscope
• Stage upward moving lock protects objectives and slides
• Stain-resistant double layer mechanical stage
• NA1.25 Abbe Condenser with iris diaphragm & filters
• Rack and pinion adjustment condenser
• Manufactured under ISO 9001 Quality Control Standard
• 5-Year Limited Warranty

Specifications:

• Eyepieces: widefield, WF10X & WF25X
• Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
• Head: 30° inclined 360° swiveling binocular
• Interpupillary distance: 2-1/8" - 3-1/8" (53-77mm)
• Adjustable ocular diopter
• Nosepiece: revolving quadruple
• Mechanical Stage: 3-D double layer
  • Size: 4-5/8" x 5" (118mm x 127mm)
  • Travel Range (X-Y): 2-13/16" x 1-3/16" (70mm x 30mm)
• Condenser: NA1.25 Abbe condenser with iris diaphragm
• Illumination: LED light, transmitted, intensity adjustable, GS and CE approved
• Focusing: coaxial coarse & fine knobs on both sides
• Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included
• Dimension: 11" x 7" x 13-3/4"

Camera Specifications:

• Sensor: Aptina
• Sensor Type: CMOS
• Sensor Size: 4.6x3.7mm
• Pixel Size: 3.6
• Resolution: 1.3MP
• Frame Rate: 7.5@1280x1024, 12.5@1024x768, 12.5@800x600
• Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX (Mac software not provided)

Software Specifications:

• OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10
• Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
