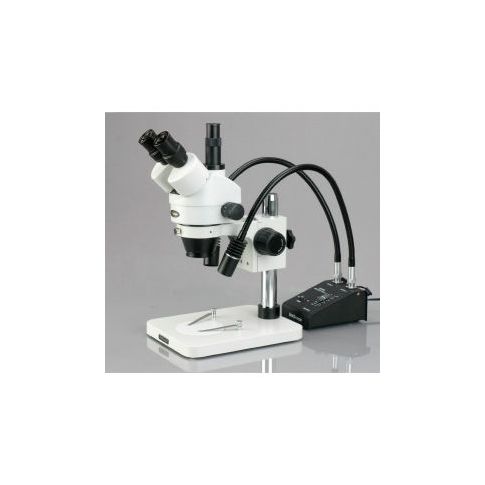

AmScope SM-1TSW2-L6W-10M 3.5-225X Zoom Stereo Microscope with LED Gooseneck Lights & 10MP Camera SM-1TSW2-L6W-10M

AmScope SM-1TSW2-L6W-10M 3.5-225X Zoom Stereo Microscope with LED Gooseneck Lights & 10MP Camera

This super widefield trinocular stereo microscope comes with a 6 Watt dual gooseneck LED illuminator and a 10MP USB digital camera. It offers 3.5X-225X zoom magnification power, a long working distance, with a super large field of view and cool light illumination. The trinocular port uses the third port for the camera capabilities, or a third party to view as well, giving you the remaining two ports to view your specimen. The LED gooseneck lights can be bent into various positions. The light source is a 85-265VAC/50-60Hz wide band voltage unit. The lamps are 3 Watts each (6 Watts in total) with fully adjustable intensity. The digital camera captures still images and video, and allows you to view a live stream on your PC. This microscopy system is an ideal instrument for manufacturing engineers, lab technicians, circuit board inspectors, and anyone in electronic and semiconductor industries.

Features:

• A stereo inspection microscope with a dual gooseneck LED lights and a 10MP color digital camera
• 3.5X-225X super wide zoom magnification power
• Powerful 6 Watt Variable Intensity LED Illuminator
• Great for Precision Lighting
• High resolution with great flatness and contrast, giving sharp and clear images
• Trinocular head with 45 degree inclined 360 degree swiveling eye tubes
• The trinocular port enables the easy use of camera capabilities
• 30mm super widefield high-eyepoint eyepieces with a 20mm field of view
• Sharp stereo erect images with a wide field of view
• Crystal clear original true color microscope images
• Dual eye tubes with adjustable diopters
• Large working distance
• Sturdy metal table pillar stand
• Accurate alignment reduces eye strain for longer periods of viewing
• Full optical glass elements
• Precise ground glass lenses
• Full metal chrome-plated mechanical components
• Adjustable interpupillary distance
• Rubber eye-guards included
• Manufactured Under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Factory Warranty

Specifications:

• Head: 360 degree rotatable 45 degree inclined trinocular
• Eyepieces: 30mm super widefield high-eyepoint WH10X/20MM and WH25X/10MM
• Barlow Lens: 0.5X and 2.0X
• Objective Zoom Range: 0.35X-9.0X, using the Barlow lenses
• Diopter Adjustment: +/- 5dp
• Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
• Working Distance: 8" (200mm)
• Illumination: 6 Watt dual gooseneck lights
• Power Input: 110-240V, 50-60HZ, automatic switching
• Stand: 10" x 7-7/8" x 10-3/4" (254 x 200 x 275mm)
• Round Plate: 3-3/4" (95mm) in diameter
• Accessories: Paired eye-caps

Camera Specifications:

• Sensor: Aptina MT9J003
• Sensor Type: CMOS
• Sensor Size: 6.44x4.616mm
• Pixel Size: 1.67
• Resolution: 10.0MP
• Frame Rate: 1.9@3584x2748, 8@1792x1374, 27@896x684
• Sensitivity: 0.31 V/lux-sec
• Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

• OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
• Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
