AmScope T390A-9M 40X-1600X Doctor Veterinary Clinic Biological Compound Microscope with 9MP Camera T390A-9M
AmScope T390A-9M 40X-1600X Doctor Veterinary Clinic Biological Compound Microscope with 9MP Camera

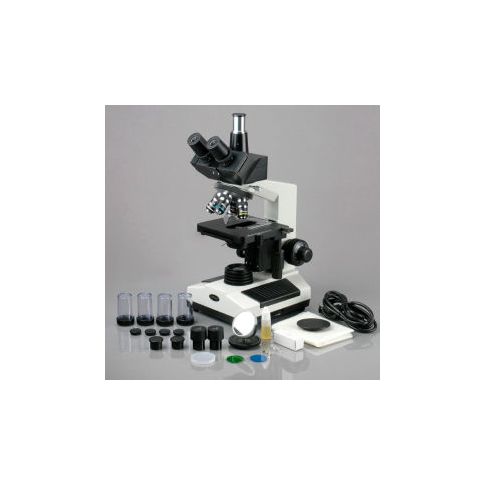

This is a professional trinocular microscope with a 9MP USB2.0 digital camera. The microscope comes with a trinocular sliding head, rack and pinion Abbe condenser with iris diaphragm, and double layer mechanical stage. This microscope is designed for teaching demonstration, clinical examination and research purpose. It offers eight levels of magnification. The trinocular port allows to add photographic or video capability. The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. This microscope is a perfect instrument for vets, college students, and those in clinic offices and biological labs.
Features:
This is a professional trinocular microscope with a 9MP USB2.0 digital camera. The microscope comes with a trinocular sliding head, rack and pinion Abbe condenser with iris diaphragm, and double layer mechanical stage. This microscope is designed for teaching demonstration, clinical examination and research purpose. It offers eight levels of magnification. The trinocular port allows to add photographic or video capability. The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. This microscope is a perfect instrument for vets, college students, and those in clinic offices and biological labs.
Features:
- Perfect for vets, labs, clinics, universities, and high schools
- Offers advanced features including stitching, fusion and measurement
- 45 degree inclined 360 degree swiveling trinocular head
- High quality professional optical glass elements
- Eight (8) levels of magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X
- Four (4) achromatic objectives DIN 4X, 10X, 40X(S), 100X(S,Oil)
- Two (2) pairs of eyepieces: WF10X and P16X
- Large size 3-D double layer mechanical stage with stain resistant finish
- Low position coaxial stage movement controls
- Coaxial coarse fine focusing with CA knob tension control
- Sliding interpupillary distance adjustment
- Ocular diopter adjustable on both eyetubes
- Variable intensity halogen illumination
- High resolution images over a wide field of view
- Metal framework
- Coaxial coarse and fine focus adjustment
- Dual focusing knobs (on both sides)
- Stage upward moving lock protects objectives and slides
- Large stain-resistant double layer mechanical stage
- NA1.25 Abbe Condenser with iris diaphragm filters
- Rack and pinion adjustment condenser
- Product GS and CE approved
- Spare Bulb, Fuse, and Immersion Oil Included
- Manufactured under ISO 9001 Quality Control Standards
- Excellent Five (5) Year Factory Warranty
- Head: 45 degree inclined 360 degree swiveling trinocular
- Nosepiece: revolving quadruple
- Eyepieces: wide field WF10X and P16X
- Objective: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
- Transmitted (lower) Illuminator: 6V/20W Halogen
- Stage: mechanical double layer size: 5-1/2" x 5-1/2" (140mm x 140mm)
- Stage X-Y Stroke (travel range): 3" x 2" (75mm x 50mm)
- Focus Adjustment: coaxial coarse fine knobs on both sides
- Focusing knob can be locked for observation transportation
- Condenser diaphragm: NA1.25 Abbe condenser with iris diaphragm
- Power supply: 110V/220V built-in auto-switching power adapter
- Sensor: Aptina
- Sensor Type: CMOS
- Sensor Size: 5.825x4.369mm
- Pixel Size: 1.67
- Resolution: 9.0MP
- Frame Rate: 11.9@3488x2616, 8@1744x1308, 27@872x654
- Sensitivity: 0.31 V/lux-sec
- Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
- OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
- Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
Product Specifications
- BRANDAmScope
- MANUFACTURER PART NUMBERT390A-9M
- DESCRIPTIONDoctor Veterinary Clinic Biological Compound Microscope with 9MP Camera
- MATERIALMetal
- COLORWhite
- SENSORCMOS
- MAGNIFICATION RANGE40X-1600X
- OPTICSAchromatic
- FIELD VIEWWidefield
- HEAD TYPETrinocular
- OBJECTIVE4X, 10X, 40X, 100X
- EYEPIECE MAGNIFICATION10X, 16X
- EYEPIECE23mm
- CAMERA PIXEL9MP
- LIGHT SOURCEHalogen
- LIGHT POWER20W
- NUMBER OF LIGHT BULBS1
- STAGETwo-layer Mechanical Stage
- STAGE DIV1.00mm
- CONDENSERAbbe-Rack & Pinion with Diaphragm
- CONDENSER TYPEBrightfield
- CONDENSER OPTICSNA 1.25
- IRISWith Iris
- POWER SUPPLY110V/220V
- TYPECompound Microscope
- REDUCTION LENS0.5X
- OPERATING SYSTEMWindows XP/Vista/7/8/10, Mac OSX, Linux
- PACKAGE QUANTITY1
- LIMITED WARRANTY5 Years
- APPLICATIONClinic, Veterinary, Laboratory, Teaching/Training
Additional Information
- UPC: 608729747130
- UNSPSC: 41111709
- Color: White
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: VE
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 19.00
- Package Width: 15.00
- Package Height: 9.00
- Package Weight: 17.00
