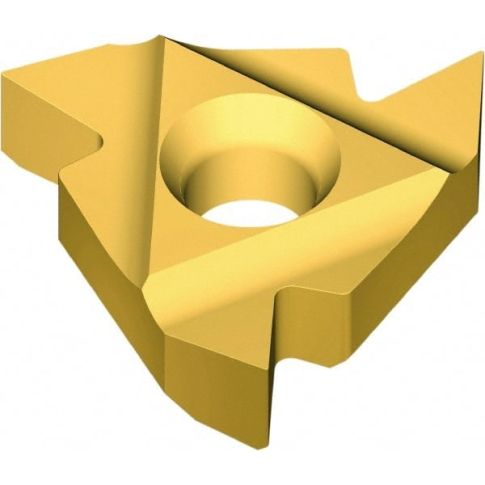

Laydown Threading Insert: 2IRA60 VKX, Solid Carbide MPN:50270
Laydown Threading Insert: 2IRA60 VKX, Solid Carbide
Laydown Threading Insert: 2IRA60 VKX, Solid Carbide TiN Finish, Right Hand Internal Partial Profile 60degree Thread, 48-16 TPI, 6.35mm Inscribed Circle, 3.17mm Thick
Product Information
- : 50270
- Coating Process: PVD
- Coating/Finish: Coated
- Corner Radius (Decimal Inch): 0.0500
- Included Angle: 60
- Inscribed Circle (Decimal Inch): 0.2500
- Inscribed Circle (Inch): 1/4
- Inscribed Circle (mm): 6.35
- Insert Hand: Right Hand
- Insert Material: Solid Carbide
- Insert Size Code: 2
- Insert Style: 2IR
- Manufacturer Grade: VKX
- Material Grade: Micrograin
- Number of Teeth Per Side: True
- Pitch (mm): 0.50 to 1.50
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: H; K; M; N; P; S
- Series: Standard
- Standards: ISO 9001:2008
- Thickness (mm): 3.17
- Thread Type: Internal
- Threads Per Inch: 48-16
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Country of Origin: IL, Israel
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.01
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 4:35am UTC
Category: Threading and Thread Mill Inserts
