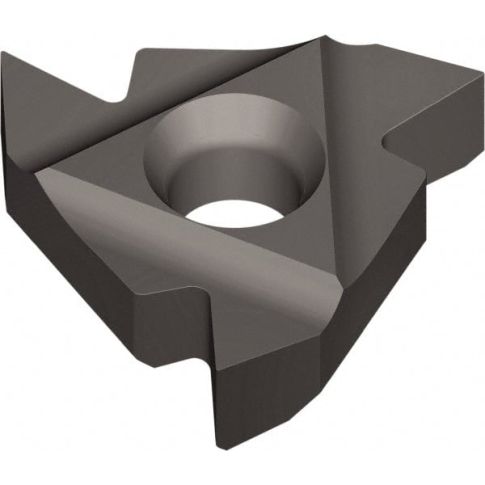

Laydown Threading Insert: 4ILN60 VTX, Solid Carbide MPN:59487
Laydown Threading Insert: 4ILN60 VTX, Solid Carbide MPN:59487 is available to buy in increments of 10
Laydown Threading Insert: 4ILN60 VTX, Solid Carbide
Laydown Threading Insert: 4ILN60 VTX, Solid Carbide TiAlN Finish, Left Hand Internal Partial Profile 60degree Thread, 7-5 TPI, 12.7mm Inscribed Circle, 4.76mm Thick
Product Information
- : 59487
- Coating Process: PVD
- Coating/Finish: Coated
- Corner Radius (Decimal Inch): 0.3000
- Included Angle: 60
- Inscribed Circle (Decimal Inch): 0.5000
- Inscribed Circle (Inch): 1/2
- Inscribed Circle (mm): 12.70
- Insert Hand: Left Hand
- Insert Material: Solid Carbide
- Insert Size Code: 4
- Insert Style: 4IL
- Manufacturer Grade: VTX
- Material Grade: Micrograin
- Number of Teeth Per Side: True
- Pitch (mm): 3.50 to 5.00
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: H; K; M; N; P; S
- Series: Standard
- Standards: ISO 9001:2008
- Thickness (mm): 4.76
- Thread Type: Internal
- Threads Per Inch: 7-5
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: IL, Israel
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.02
- Prohibited States: AK,HI,PR
Product info last updated on April 1, 2024 1:00am UTC
Category: Threading and Thread Mill Inserts
