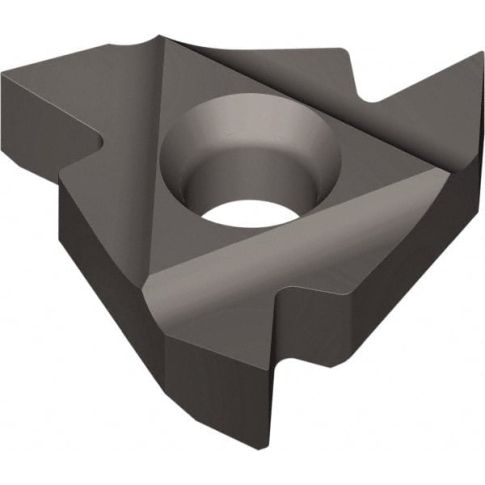

Laydown Threading Insert: 3IR11.5NPS VTX, Solid Carbide MPN:54047
Laydown Threading Insert: 3IR11.5NPS VTX, Solid Carbide MPN:54047 is available to buy in increments of 10
Laydown Threading Insert: 3IR11.5NPS VTX, Solid Carbide
Laydown Threading Insert: 3IR11.5NPS VTX, Solid Carbide TiAlN Finish, Right Hand Internal NPS Thread, 11.5 TPI, 9.53mm Inscribed Circle, 3.6mm Thick
Product Information
- : 54047
- Coating Process: PVD
- Coating/Finish: Coated
- Included Angle: 60
- Inscribed Circle (Decimal Inch): 0.3750
- Inscribed Circle (Inch): 3/8
- Inscribed Circle (mm): 9.53
- Insert Hand: Right Hand
- Insert Material: Solid Carbide
- Insert Size Code: 3
- Insert Style: 3IR
- Manufacturer Grade: VTX
- Material Grade: Micrograin
- Number of Teeth Per Side: True
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: H; K; M; N; P; S
- Series: Standard
- Standards: ISO 9001:2008; USA NBS H28 (1957)
- Thickness (mm): 3.60
- Thread Standard: NPS
- Thread Type: Internal
- Threads Per Inch: 11.5
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: Coo Data Unavail
- TAA Compliant: No
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.01
- Prohibited States: AK,HI,PR
Product info last updated on April 1, 2024 12:46am UTC
Category: Threading and Thread Mill Inserts
