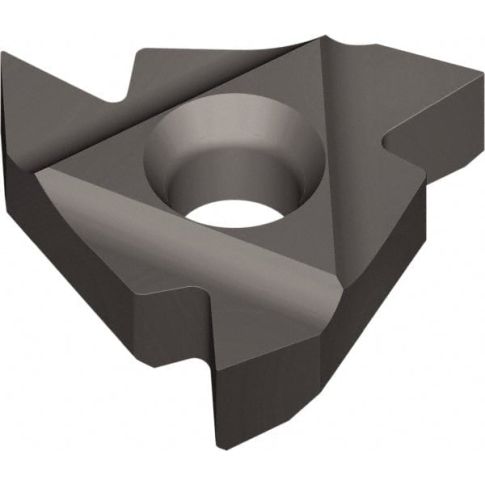

Laydown Threading Insert: 5ILQ60 VTX, Solid Carbide MPN:59098
Laydown Threading Insert: 5ILQ60 VTX, Solid Carbide MPN:59098 is available to buy in increments of 5
Laydown Threading Insert: 5ILQ60 VTX, Solid Carbide
Laydown Threading Insert: 5ILQ60 VTX, Solid Carbide TiAlN Finish, Left Hand Internal Partial Profile 60degree Thread, 4.5-4 TPI, 15.88mm Inscribed Circle, 6.35mm Thick
Product Information
- : 59098
- Coating Process: PVD
- Coating/Finish: TiAlN
- Corner Radius (Decimal Inch): 0.3000
- Included Angle: 60
- Inscribed Circle (Decimal Inch): 0.6250
- Inscribed Circle (Inch): 5/8
- Inscribed Circle (mm): 15.88
- Insert Hand: Left Hand
- Insert Material: Solid Carbide
- Insert Style: 5IL
- Manufacturer Grade: VTX
- Material Grade: Micrograin
- Number of Teeth Per Side: True
- Pitch (mm): 5.50 to 6.00
- Thickness (mm): 6.35
- Thread Type: Internal
- Threads Per Inch: 4.5-4
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: IL, Israel
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.04
- Prohibited States: AK,HI,PR
Product info last updated on April 4, 2024 3:03am UTC
Category: Threading and Thread Mill Inserts
