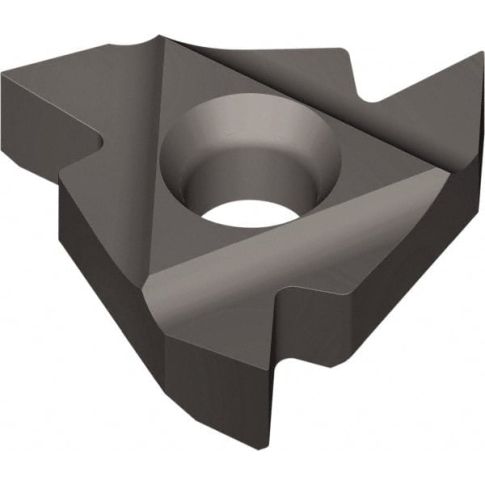

Laydown Threading Insert: 4IR5UN VTX, Solid Carbide MPN:59203
Laydown Threading Insert: 4IR5UN VTX, Solid Carbide MPN:59203 is available to buy in increments of 10
Laydown Threading Insert: 4IR5UN VTX, Solid Carbide
Laydown Threading Insert: 4IR5UN VTX, Solid Carbide TiAlN Finish, Right Hand Internal UN Thread, 5 TPI, 12.7mm Inscribed Circle, 4.76mm Thick
Product Information
- : 59203
- Coating Process: PVD
- Coating/Finish: TiAlN
- Included Angle: 60
- Inscribed Circle (Decimal Inch): 0.5000
- Inscribed Circle (Inch): 1/2
- Inscribed Circle (mm): 12.70
- Insert Hand: Right Hand
- Insert Material: Solid Carbide
- Insert Style: 4IR
- Manufacturer Grade: VTX
- Material Grade: Micrograin
- Number of Teeth Per Side: True
- Thickness (mm): 4.76
- Thread Standard: UN
- Thread Type: Internal
- Threads Per Inch: 5
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Country of Origin: IL, Israel
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Length: 2.99
- Package Width: 1.46
- Package Height: 1.42
- Package Weight: 0.02
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 1:46am UTC
Category: Threading and Thread Mill Inserts
