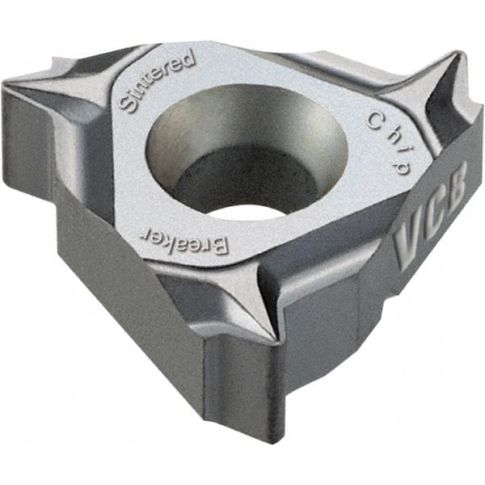

Laydown Threading Insert: 2JIR20UN VCB, Solid Carbide MPN:53699
Laydown Threading Insert: 2JIR20UN VCB, Solid Carbide MPN:53699 is available to buy in increments of 10
Laydown Threading Insert: 2JIR20UN VCB, Solid Carbide
Laydown Threading Insert: 2JIR20UN VCB, Solid Carbide TiAlN Finish, Right Hand Internal UN Thread, 20 TPI, 6.35mm Inscribed Circle, 3.17mm Thick
Product Information
- : 53699
- Coating Process: PVD
- Coating/Finish: TiAlN
- Included Angle: 60
- Inscribed Circle (Decimal Inch): 0.2500
- Inscribed Circle (Inch): 1/4
- Inscribed Circle (mm): 6.35
- Insert Hand: Right Hand
- Insert Material: Solid Carbide
- Insert Style: 2JIR
- Manufacturer Grade: VCB
- Material Grade: Micrograin
- Number of Teeth Per Side: True
- Thickness (mm): 3.17
- Thread Standard: UN
- Thread Type: Internal
- Threads Per Inch: 20
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: Coo Data Unavail
- TAA Compliant: No
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Length: 2.44
- Package Width: 1.18
- Package Height: 0.94
- Prohibited States: AK,HI,PR
Product info last updated on April 4, 2024 3:53am UTC
Category: Threading and Thread Mill Inserts
