Laydown Threading Insert: 2IR1.0ISO VTX, Solid Carbide MPN:53625
Laydown Threading Insert: 2IR1.0ISO VTX, Solid Carbide MPN:53625 is available to buy in increments of 10
Laydown Threading Insert: 2IR1.0ISO VTX, Solid Carbide

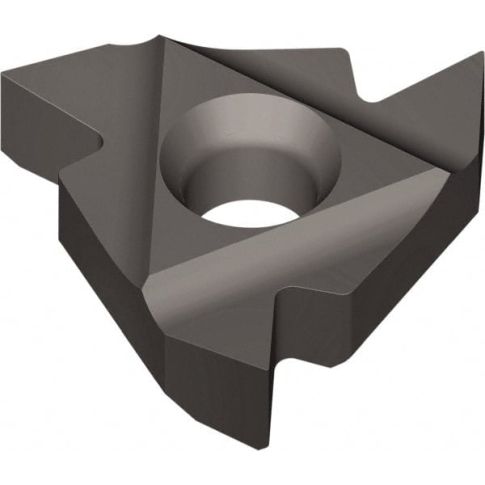

Laydown Threading Insert: 2IR1.0ISO VTX, Solid Carbide TiAlN Finish, Right Hand Internal ISO Thread, 6.35mm Inscribed Circle, 3.17mm Thick
Product Information
- : 53625
- Coating Process: PVD
- Coating/Finish: Coated
- Included Angle: 60
- Inscribed Circle (Decimal Inch): 0.2500
- Inscribed Circle (Inch): 1/4
- Inscribed Circle (mm): 6.35
- Insert Hand: Right Hand
- Insert Material: Solid Carbide
- Insert Size Code: 2
- Insert Style: 2IR
- Manufacturer Grade: VTX
- Material Grade: Micrograin
- Number of Teeth Per Side: True
- Pitch (mm): 1.00
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: H; K; M; N; P; S
- Series: Standard
- Standards: DIN 13; ISO 9001:2008
- Thickness (mm): 3.17
- Thread Standard: ISO
- Thread Type: Internal
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: Coo Data Unavail
- TAA Compliant: No
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Length: 2.44
- Package Width: 1.18
- Package Height: 0.94
- Prohibited States: AK,HI,PR
Product info last updated on July 1, 2024 12:39am UTC
Category: Threading and Thread Mill Inserts
