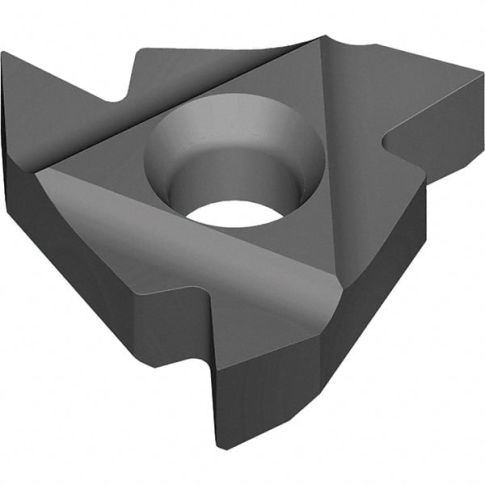

Laydown Threading Insert: 3ER14ANPT VTX, Solid Carbide MPN:021-07587
Laydown Threading Insert: 3ER14ANPT VTX, Solid Carbide
Laydown Threading Insert: 3ER14ANPT VTX, Solid Carbide TiAIN Finish, Right Hand External ANPT Thread, 14 TPI, 3/8" Inscribed Circle, 3.6mm Thick
Product Information
- : 021-07587
- Coating Process: PVD
- Coating/Finish: Coated
- Included Angle: 60
- Inscribed Circle (Decimal Inch): 0.3750
- Inscribed Circle (Inch): 3/8
- Insert Hand: Right Hand
- Insert Material: Solid Carbide
- Insert Size Code: 3
- Insert Style: 3ER
- Manufacturer Grade: VTX
- Manufacturers Catalog Number: 3ER14ANPT VTX
- Material Grade: Micrograin
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: H; K; M; N; P; S
- Series: Standard
- Standards: ISO 9001:2008; MIL-P-7105B
- Thickness (Decimal Inch - 4 Decimals): 0.1417
- Thickness (mm): 3.60
- Thread Standard: ANPT
- Thread Type: External
- Threads Per Inch: 14
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: IL, Israel
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Length: 2.44
- Package Width: 1.18
- Package Height: 0.95
- Package Weight: 0.03
- Prohibited States: AK,HI,PR
Product info last updated on July 16, 2024 12:02pm UTC
Category: Threading and Thread Mill Inserts
