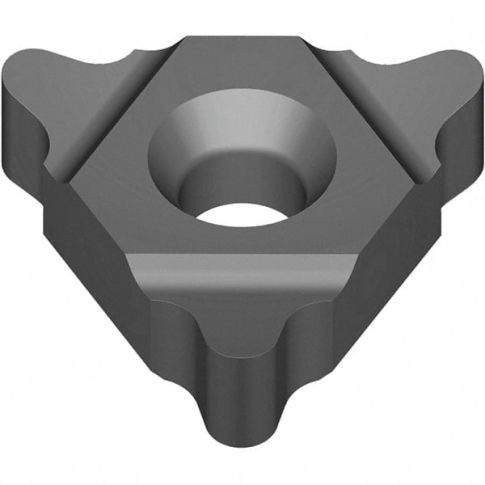

Laydown Threading Insert: 4UE3.5ACME-2G VTX, Solid Carbide MPN:022-00147
Laydown Threading Insert: 4UE3.5ACME-2G VTX, Solid Carbide
Laydown Threading Insert: 4UE3.5ACME-2G VTX, Solid Carbide TiAIN Finish, Left Hand/Right Hand External ACME 2G Thread, 3.5 TPI, 1/2" Inscribed Circle, 4.76mm Thick
Product Information
- : 022-00147
- Ansi Code: ANSI B1.5:1988
- Coating Process: PVD
- Coating/Finish: Coated
- Included Angle: 29
- Inscribed Circle (Decimal Inch): 0.5000
- Inscribed Circle (Inch): 1/2
- Insert Hand: Left Hand; Right Hand
- Insert Material: Solid Carbide
- Insert Size Code: 4
- Insert Style: 4UE
- Manufacturer Grade: VTX
- Manufacturers Catalog Number: 4UE3.5ACME-2G VTX
- Material Grade: Micrograin
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: H; K; M; N; P; S
- Series: U Style
- Standards: ANSI B1.5:1988; ISO 9001:2008
- Thickness (Decimal Inch - 4 Decimals): 0.1874
- Thickness (mm): 4.76
- Thread Standard: Acme 2G
- Thread Type: External
- Threads Per Inch: 3.5
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: Coo Data Unavail
- TAA Compliant: No
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Length: 2.99
- Package Width: 1.46
- Package Height: 1.42
- Package Weight: 0.05
- Prohibited States: AK,HI,PR
Product info last updated on April 26, 2024 12:00pm UTC
Category: Threading and Thread Mill Inserts
