Laydown Threading Insert: 3ER32UN VTX, Solid Carbide MPN:51746
Laydown Threading Insert: 3ER32UN VTX, Solid Carbide

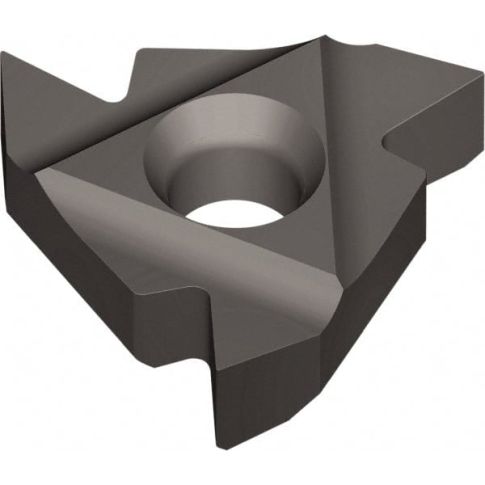

Laydown Threading Insert: 3ER32UN VTX, Solid Carbide TiAlN Finish, Right Hand External UN Thread, 32 TPI, 9.53mm Inscribed Circle, 3.6mm Thick
Product Information
- : 51746
- Ansi Code: ANSI B1.1:74
- Coating Process: PVD
- Coating/Finish: Coated
- Included Angle: 60
- Inscribed Circle (Decimal Inch): 0.3750
- Inscribed Circle (Inch): 3/8
- Inscribed Circle (mm): 9.53
- Insert Hand: Right Hand
- Insert Material: Solid Carbide
- Insert Size Code: 3
- Insert Style: 3ER
- Manufacturer Grade: VTX
- Material Grade: Micrograin
- Number of Teeth Per Side: True
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: H; K; M; N; P; S
- Series: Standard
- Standards: ANSI B1.1:74; ISO 9001:2008
- Thickness (mm): 3.60
- Thread Standard: UN
- Thread Type: External
- Threads Per Inch: 32
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Country of Origin: IL, Israel
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.01
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 5:58am UTC
Category: Threading and Thread Mill Inserts
