Laydown Threading Insert: 5ER4.5UN VTX, Solid Carbide MPN:58988
Laydown Threading Insert: 5ER4.5UN VTX, Solid Carbide MPN:58988 is available to buy in increments of 5

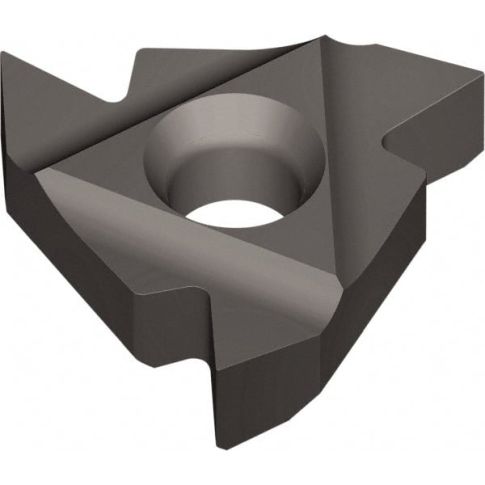

Laydown Threading Insert: 5ER4.5UN VTX, Solid Carbide
Laydown Threading Insert: 5ER4.5UN VTX, Solid Carbide TiAlN Finish, Right Hand External UN Thread, 4.5 TPI, 15.88mm Inscribed Circle, 6.35mm Thick
Product Information
- : 58988
- Ansi Code: ANSI B1.1:74
- Coating Process: PVD
- Coating/Finish: Coated
- Included Angle: 60
- Inscribed Circle (Decimal Inch): 0.6250
- Inscribed Circle (Inch): 5/8
- Inscribed Circle (mm): 15.88
- Insert Hand: Right Hand
- Insert Material: Solid Carbide
- Insert Size Code: 5
- Insert Style: 5ER
- Manufacturer Grade: VTX
- Material Grade: Micrograin
- Number of Teeth Per Side: True
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: H; K; M; N; P; S
- Series: Standard
- Standards: ANSI B1.1:74; ISO 9001:2008
- Thickness (mm): 6.35
- Thread Standard: UN
- Thread Type: External
- Threads Per Inch: 4.5
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Country of Origin: Coo Data Unavail
- TAA Compliant: No
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.01
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 1:05am UTC
Category: Threading and Thread Mill Inserts
