5I8UNTM2VTX Carbide Thread Mill Insert MPN:64743
5I8UNTM2VTX Carbide Thread Mill Insert MPN:64743 is available to buy in increments of 5

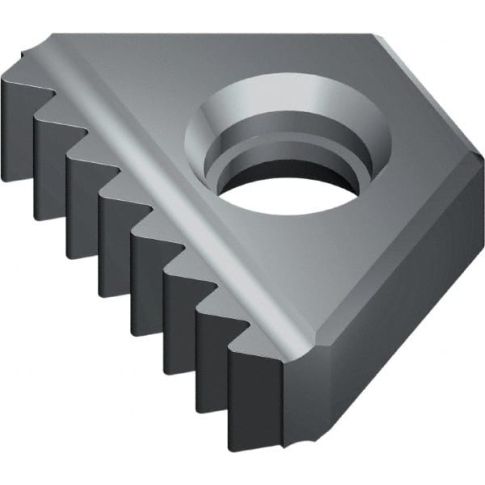

5I8UNTM2VTX Carbide Thread Mill Insert
5I8UNTM2VTX Carbide Thread Mill Insert TiCN Finish, Internal, UN, 8 TPI
Product Information
- : 64743
- Ansi Code: ANSI B1.1:74
- Coating Process: PVD
- Inscribed Circle (Inch): 5/8
- Inscribed Circle (mm): 15.88
- Insert Material: Carbide
- Insert Size Code: 5
- Insert Style: 5I
- Internal Threads Per Inch: 8
- Manufacturer Grade: VBX
- Material Grade: Micrograin
- Primary Workpiece Material: Superalloy; Titanium
- Primary Workpiece Material Code: N
- Series: Standard TM
- Standards: ANSI B1.1:74
- Teeth Per Inch: 8
- Thread Standard: UN
- Thread Type: Internal
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: IL, Israel
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.04
- Prohibited States: AK,HI,PR
Product info last updated on April 1, 2024 12:41am UTC
Category: Threading and Thread Mill Inserts
