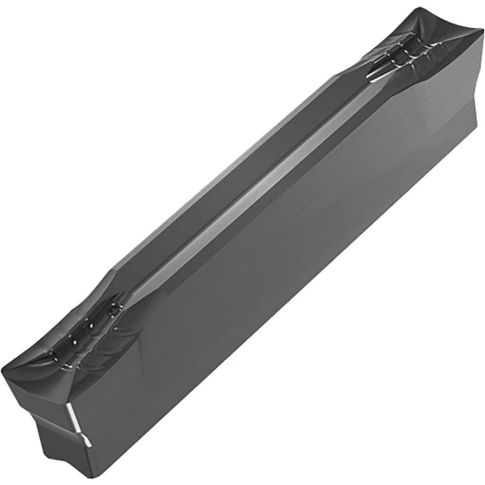

Grooving Inserts, Insert Style: VG-Cut , Insert Size Code: VGD 4.0-020 GT VPG , Cutting Width (mm): 4.000 , Insert Hand: Neutral MPN:084-00014
Grooving Inserts; Insert Style: VG-Cut ; Insert Size Code: VGD 4.0-020 GT VPG ; Cutting Width (mm): 4.000 ; Insert Hand: Neutral ; Maximum Depth of Cut (mm): 23.00 ; Insert Material: Carbide
The VG-Cut grooving inserts are versatile and ideal for users in various industries such as aerospace, automotive, and die & mold sectors looking to enhance the efficiency of their milling and threading processes. Featuring a VGD 4.0-020 GT insert size code, with neutral hand orientation, it offers excellent performance while providing precision grooving operations for small diameter threads (up to 20 mm). The indexable inserts eliminate the need for custom tools or expensive replacement, offering cost savings and consistent quality in multiple applications.
- Grooving Inserts
- Insert Style: VG-Cut
- Insert Size Code: VGD 4.0-020 GT VPG
- Cutting Width (mm): 4.000
- Insert Hand: Neutral
- Maximum Depth of Cut (mm): 23.00
- Insert Material: Carbide
Product Information
- : 084-00014
- Chip Breaker: GT
- Coating Process: PVD
- Coating/Finish: TiAlN
- Corner Radius (mm): 0.2
- Cutting Tool Application: Boring; Facing; Grooving; Parting; Turning
- Cutting Width (mm): 4.000
- Insert Hand: Neutral
- Insert Holding Method: Screw
- Insert Material: Carbide
- Insert Size Code: VGD 4.0-020 GT VPG
- Insert Style: VG-Cut
- Lead Angle: 0.000
- Manufacturer Grade: VPG
- Maximum Depth of Cut (mm): 23.00
- Multi-Use Tool: Yes
- Overall Length (Decimal Inch): 0.9842
- Overall Length (mm): 25.0000
- Overall Width (Decimal Inch - 4 Decimals): 0.1574
- Overall Width (mm): 4.0000
- Rake: Neutral
- Series: VG-Cut
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: Coo Data Unavail
- TAA Compliant: No
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.01
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 4:35am UTC
Category: Grooving Inserts
