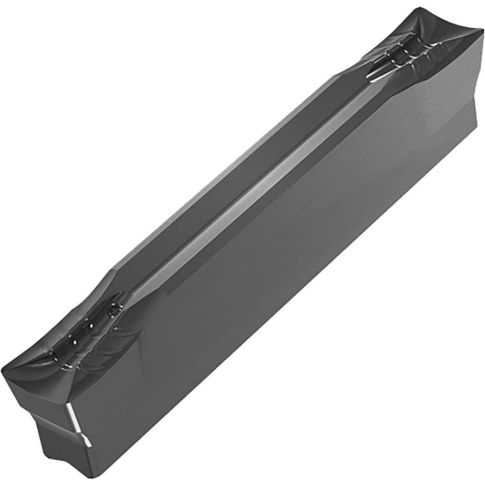

Grooving Inserts, Insert Style: VG-Cut , Insert Size Code: VGD 3.00-030 GT VKG , Cutting Width (mm): 3.000 , Insert Hand: Neutral MPN:084-00005
Grooving inserts, specifically VG-cut type, are utilized by manufacturing professionals working with milling machines for cutting different types of materials such as aluminum, cast iron, brass and other metallic compositions at varying thickness levels ranging from thin to medium. These solid carbide inserts offer outstanding durability, superior edge stability, high feed rates along with reduced wear during the cutting process while maintaining a smooth surface finish demanded for precision applications across diverse industries including automotive, aerospace or electronics where intricate designs requiring consistent geometries must be produced reliably each time. Neutral hand inserts feature symmetrical design making them well suited to handle most directional machining demands without producing any specific orientation preferences minimizing operator dependency resulting in quicker set up changes reducing downtime enhancing overall productivity on the shop floor.
- Grooving Inserts
- Insert Style: VG-Cut
- Insert Size Code: VGD 3.00-030 GT VKG
- Cutting Width (mm): 3.000
- Insert Hand: Neutral
- Maximum Depth of Cut (mm): 20.00
- Insert Material: Carbide
Product Information
- : 084-00005
- Chip Breaker: GT
- Coating Process: CVD
- Coating/Finish: TiCN/Al2O3
- Corner Radius (mm): 0.3
- Cutting Tool Application: Boring; Facing; Grooving; Parting; Turning
- Cutting Width (mm): 3.000
- Insert Hand: Neutral
- Insert Holding Method: Screw
- Insert Material: Carbide
- Insert Size Code: VGD 3.00-030 GT VKG
- Insert Style: VG-Cut
- Lead Angle: 0.000
- Manufacturer Grade: VKG
- Maximum Depth of Cut (mm): 20.00
- Multi-Use Tool: Yes
- Overall Length (Decimal Inch): 0.8661
- Overall Length (mm): 22.0000
- Overall Width (Decimal Inch - 4 Decimals): 0.1181
- Overall Width (mm): 3.0000
- Rake: Neutral
- Series: VG-Cut
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: Coo Data Unavail
- TAA Compliant: No
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.01
- Prohibited States: AK,HI,PR
