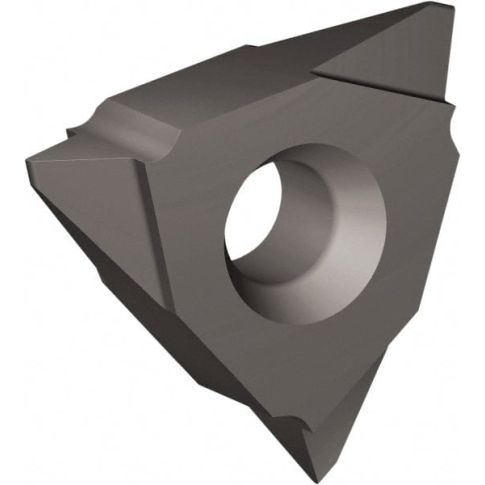

On-Edge Threading Insert: Partial Profile 60 ° MPN:62191
On-Edge Threading Insert: Partial Profile 60 ° MPN:62191 is available to buy in increments of 10
On-Edge Threading Insert: Partial Profile 60 °, External, Right Hand
On-Edge Threading Insert: Partial Profile 60 degree, External, Right Hand 14-8 External TPI, 3/8" IC, TiAlN Finish
Product Information
- : 62191
- Coating Process: PVD
- Coating/Finish: TiAlN
- Corner Radius (Decimal Inch): 0.0031
- Cutting Direction: Right Hand
- External Pitch (mm): 1.75-3
- External Threads Per Inch: 14-8
- Hole Diameter: 0.1516
- Inscribed Circle (Decimal Inch): 0.3750
- Inscribed Circle (Inch): 3/8
- Insert Material: Solid Carbide
- Insert Size Code: 16
- Insert Style: 3VER
- Manufacturer Grade: VTX
- Material Grade: Micrograin
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: H; K; M; N; P; S
- Rake: Positive
- Rake Angle: 10
- Standards: ISO 9001:2008
- Thickness (Decimal Inch - 4 Decimals): 0.1417
- Thread Standard: Partial Profile 60 Degree
- Thread Type: External
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Country of Origin: Coo Data Unavail
- TAA Compliant: No
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.42
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 4:35am UTC
Category: Threading and Thread Mill Inserts
