Vibco Silent Pneumatic Turbine Vibrator - VS-380HT VS-380HT
Vibco Silent Pneumatic Turbine Vibrator - VS-380HT VS-380HT Apply for Trade Credit & Tax Exempt Purchases. Start Shopping Today. Free Shipping.

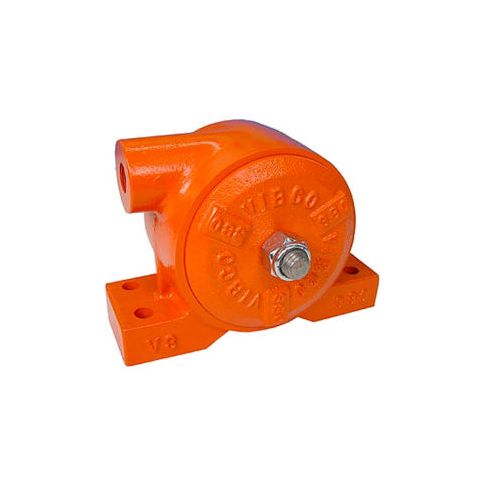

Vibco Silent Pneumatic Turbine Vibrator - VS-380HT
VS series Silent Turbine Vibrator with built in muffler for High Temperature Applications, 350° F max. (180° C). Graphite Impregnated Bearings. 80 PSI max operating pressure, 4500 VPM, 21 CFM, 725 lbs of force. No lubrication required Factory recommended filter regulator for optimum life and performance.
VS series Silent Turbine Vibrator with built in muffler for High Temperature Applications, 350° F max. (180° C). Graphite Impregnated Bearings. 80 PSI max operating pressure, 4500 VPM, 21 CFM, 725 lbs of force. No lubrication required Factory recommended filter regulator for optimum life and performance.
Product Specifications
- LENGTH INCHES6.875
- WIDTH INCHES4.75
- HEIGHT INCHES4.875
- BRANDVibco Vibrators
- CONSTRUCTIONHigh Temp Cast Iron Foot Mount
- SERIESVS
- INLET3/8-NPT
- FORCE LBS680
- ENCLOSURESide Exhaust Cover
- SPEED VPM @ 60 PSI4600
- SPEED VPM @ 80 PSI5200
- CFM @ 60 PSI16
- CFM @ 80 PSI17
- ADJUSTABLE SPEED OPTIONYes
- DECIBEL72
- DIMENSION A INCHES5.5
- DIMENSION B INCHES1.25
- DIMENSION C INCHES0.375
- DIMENSION F INCHES1
- DIMENSION G INCHES4
- DIMENSION R INCHES2.25
- MANUFACTURERS PART NUMBERVS-380HT
Additional Information
- UNSPSC: 20111606
- Brand: Vibco Vibrators
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: RI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 6.88
- Package Width: 5.00
- Package Height: 4.88
- Package Weight: 11.60
Product info last updated on September 6, 2024 9:58pm UTC
Category: Vibrators
