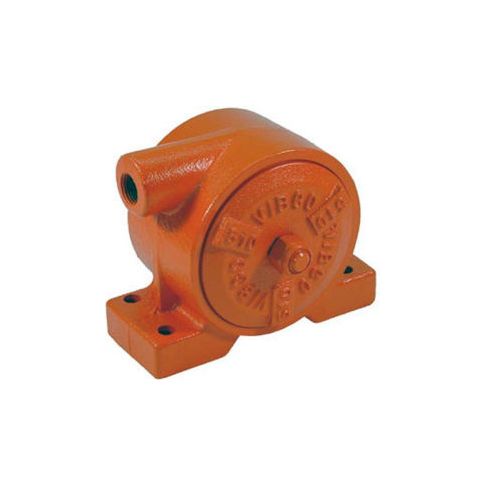

Vibco Silent Pneumatic Turbine Vibrator - VS-510HT VS-510HT
Vibco Silent Pneumatic Turbine Vibrator - VS-510HT VS-510HT Free Shipping. Millions of Products. Veteran Owned. Shop, Save, Support Veterans.
Vibco Silent Pneumatic Turbine Vibrator - VS-510HT
VS series Silent Turbine Vibrator with built in muffler for High Temperature Applications, 350° F max. (180° C). Graphite Impregnated Bearings. VS series silent turbine vibrators have a built in muffler, available in cast iron housing. 80 PSI max operating pressure, 4500 VPM, 21 CFM, 900 lbs of force. No lubrication required Factory recommended filter regulator for optimum life and performance.
VS series Silent Turbine Vibrator with built in muffler for High Temperature Applications, 350° F max. (180° C). Graphite Impregnated Bearings. VS series silent turbine vibrators have a built in muffler, available in cast iron housing. 80 PSI max operating pressure, 4500 VPM, 21 CFM, 900 lbs of force. No lubrication required Factory recommended filter regulator for optimum life and performance.
Product Specifications
- LENGTH INCHES6.9375
- WIDTH INCHES4.75
- HEIGHT INCHES5.375
- BRANDVibco Vibrators
- CONSTRUCTIONHigh Temp Cast Iron Foot Mount
- SERIESVS
- INLET1/2-NPT
- FORCE LBS900
- ENCLOSURESide Exhaust Cover
- SPEED VPM @ 60 PSI4000
- SPEED VPM @ 80 PSI4500
- CFM @ 60 PSI18
- CFM @ 80 PSI21
- ADJUSTABLE SPEED OPTIONYes
- DECIBEL77
- DIMENSION A INCHES5.5
- DIMENSION B INCHES1.75
- DIMENSION C INCHES0.375
- DIMENSION F INCHES1
- DIMENSION G INCHES4.75
- DIMENSION R INCHES2.75
- MANUFACTURERS PART NUMBERVS-510HT
Additional Information
- UNSPSC: 20111606
- Brand: Vibco Vibrators
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: RI
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 8.62
- Package Width: 6.44
- Package Height: 5.88
- Package Weight: 15.80
Product info last updated on September 6, 2024 9:58pm UTC
Category: Vibrators
