Grooving Insert: GX2E318N03UF4 WSM33S, Solid Carbide MPN:6118733
Grooving Insert: GX2E318N03UF4 WSM33S, Solid Carbide MPN:6118733 is available to buy in increments of 10

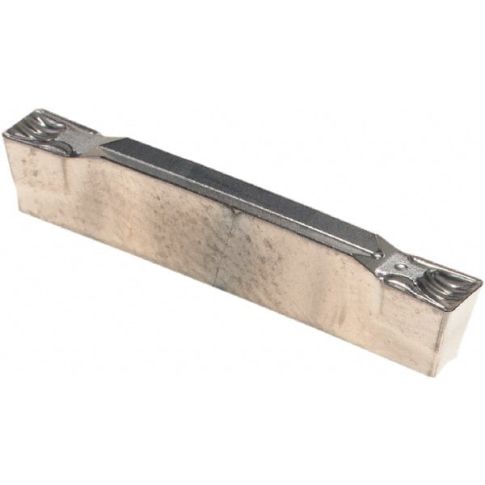

Grooving Insert: GX2E318N03UF4 WSM33S, Solid Carbide
Grooving Insert: GX2E318N03UF4 WSM33S, Solid Carbide Al2O3, TiAlN & ZrCN Finish, Neutral, 3.18 mm Cutting Width, 2 mm Max Depth, Series Tiger-tec
Product Information
- : 6118733
- Ansi Code: GX242E318N03UF4 WSM33S
- Chip Breaker: UF4
- Coating Process: PVD
- Coating/Finish: Al2O3; TiAlN; ZrCN
- Corner Radius (Decimal Inch): 0.0118
- Corner Radius (mm): 0.30
- Cutting Tool Application: Grooving; Recessing
- Cutting Width (Decimal Inch): 0.1252
- Cutting Width (mm): 3.18
- Full Radius: No
- Insert Hand: Neutral
- Insert Holding Method: Clamp
- Insert Material: Solid Carbide
- Insert Size: 2E318N03
- Insert Size Code: 2E318N03
- Insert Style: GX
- Iso Code: GX24-2E318N03-UF4
- Manufacturer Grade: WSM33S
- Manufacturers Catalog Number: False
- Material Grade: S30; M30; P35
- Maximum Depth of Cut (Decimal Inch): 0.0787
- Maximum Depth of Cut (mm): 2.00
- Maximum Depth of Cut Range (Decimal Inch): 0.0750 to 0.1000
- Maximum Depth of Cut Range (mm): 2.00 to 3.00
- Multi-Use Tool: Yes
- Overall Length (Decimal Inch): 0.9449
- Overall Length (mm): 24.00
- Primary Workpiece Material: Superalloy
- Primary Workpiece Material Code: M; P; S
- Series: Tiger-tec
- Single Or Double End: Double
- Standards: ANSI; ISO
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Country of Origin: Coo Data Unavail
- TAA Compliant: No
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Length: 5.43
- Package Width: 2.20
- Package Height: 0.55
- Package Weight: 4.52
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 12:41am UTC
Category: Grooving Inserts
