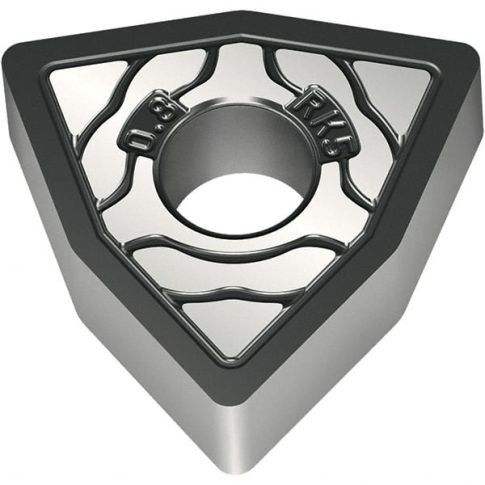

Grooving Insert: INGD WNMA3125 433RK5 IC807 WKK10S, Solid Carbide MPN:6411986
Grooving Insert: INGD WNMA3125 433RK5 IC807 WKK10S, Solid Carbide MPN:6411986 is available to buy in increments of 10
Grooving Insert: INGD WNMA3125 433RK5 IC807 WKK10S, Solid Carbide
Grooving Insert: INGD WNMA3125 433RK5 IC807 WKK10S, Solid Carbide TiAlN & TiN Finish, Left Hand, 3.18 mm Cutting Width, 5 mm Max Depth, Series Notch-Grip & Tiger-tec Silver
Product Information
- : 6411986
- Ansi Code: INGD3125L IC807
- Chip Breaker: RK5
- Coating Process: CVD; PVD
- Coating/Finish: TiAlN; TiN
- Corner Radius (Decimal Inch): 0.0469
- Corner Radius (mm): 0.19
- Cutting Tool Application: Roughing
- Cutting Width (Decimal Inch): 0.1250
- Cutting Width (mm): 3.18
- Hole Diameter (Decimal Inch): 0.2020
- Included Angle Degree: 80
- Inscribed Circle (Decimal Inch): 0.5000
- Inscribed Circle (Inch): 1/2
- Insert Hand: Left Hand
- Insert Holding Method: Pin; Clamp
- Insert Material: Solid Carbide
- Insert Size: 3125; 433
- Insert Size Code: 433
- Insert Style: INGD; WNMA
- Insert Thickness: 8.74
- Insert Thickness (Decimal Inch): 0.3440
- Iso Code: INGD3125L IC807
- Manufacturer Grade: IC807; WKK10S
- Manufacturers Catalog Number: 6411986
- Material Grade: Submicron; K10; H30
- Maximum Corner Radius (Decimal Inch): 0.0075
- Maximum Depth of Cut (mm): 5.00
- Multi-Use Tool: Yes
- Overall Length (Decimal Inch): 0.9900
- Overall Length (mm): 25.14
- Overall Width (Decimal Inch - 4 Decimals): 0.1950
- Overall Width (mm): 4.95
- Primary Workpiece Material: Cast Iron
- Primary Workpiece Material Code: K
- Rake: Negative
- Rake Angle: 0.00
- Secondary Workpiece Material: Hard Material
- Secondary Workpiece Material Code: H
- Series: Notch-Grip; Tiger-tec Silver
- Single Or Double End: Double
- Standards: ANSI; ISO
- Thickness (Inch): 3/16
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: Coo Data Unavail
- TAA Compliant: No
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Length: 5.43
- Package Width: 2.20
- Package Height: 0.55
- Package Weight: 4.59
- Prohibited States: AK,HI,PR
