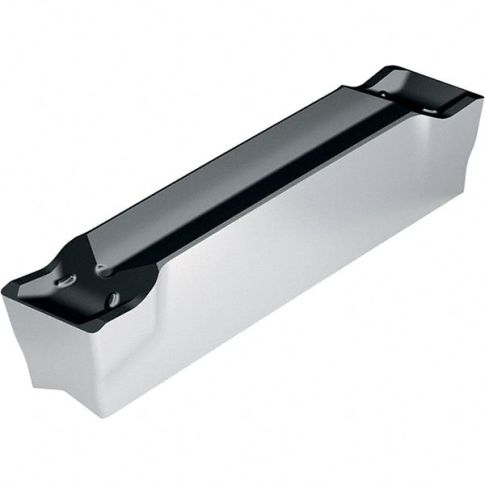

Grooving Insert: GX3E500N030CE4 WPP23, Solid Carbide MPN:5612662
Grooving Insert: GX3E500N030CE4 WPP23, Solid Carbide MPN:5612662 is available to buy in increments of 10
Grooving Insert: GX3E500N030CE4 WPP23, Solid Carbide
Grooving Insert: GX3E500N030CE4 WPP23, Solid Carbide Al2O3, TiCN & TiN Finish, Neutral, 0.1969" Cutting Width, Series Tiger-tec
Product Information
- : 5612662
- Ansi Code: GX24-3E500N030-CE4
- Chip Breaker: CE4
- Coating Process: CVD
- Coating/Finish: Al2O3; TiCN; TiN
- Corner Radius (Decimal Inch): 0.0118
- Corner Radius (mm): 0.30
- Cutting Tool Application: Grooving; Parting
- Cutting Width (Decimal Inch): 0.1969
- Cutting Width (mm): 5.00
- Full Radius: No
- Insert Hand: Neutral
- Insert Holding Method: Clamp
- Insert Material: Solid Carbide
- Insert Size: 3E500N030
- Insert Size Code: 3E500N03
- Insert Style: GX
- Iso Code: GX24-3E500N030-CE4
- Manufacturer Grade: WPP23
- Manufacturers Catalog Number: False
- Material Grade: P20; K30
- Multi-Use Tool: Yes
- Overall Length (Decimal Inch): 0.9449
- Overall Length (mm): 24.00
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: K; M; P; S
- Series: Tiger-tec
- Single Or Double End: Double
- Standards: ANSI; ISO
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Country of Origin: Coo Data Unavail
- TAA Compliant: No
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Length: 5.43
- Package Width: 2.21
- Package Height: 0.51
- Package Weight: 0.01
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 6:43am UTC
Category: Grooving Inserts
