Grooving Insert: GX3E400N04UD4 WSM33S, Solid Carbide MPN:6193843
Grooving Insert: GX3E400N04UD4 WSM33S, Solid Carbide MPN:6193843 is available to buy in increments of 10

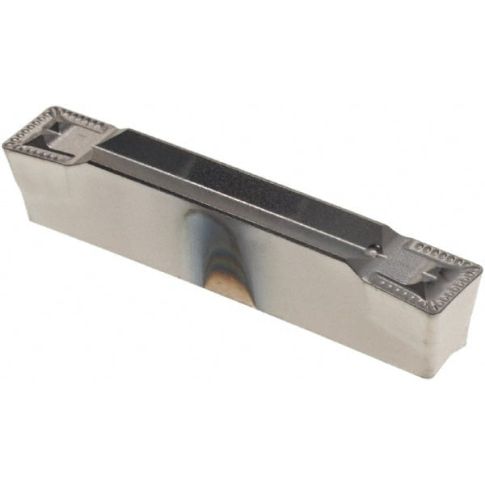

Grooving Insert: GX3E400N04UD4 WSM33S, Solid Carbide
Grooving Insert: GX3E400N04UD4 WSM33S, Solid Carbide Al2O3, TiAlN & ZrCN Finish, Neutral, 4 mm Cutting Width, 2.8 mm Max Depth, Series Tiger-tec Silver
Product Information
- : 6193843
- Ansi Code: GX243E400N04UD4 WSM33S
- Chip Breaker: UD4
- Coating Process: PVD
- Coating/Finish: Al2O3; TiAlN; ZrCN
- Corner Radius (Decimal Inch): 0.0157
- Corner Radius (mm): 0.40
- Cutting Tool Application: Grooving; Recessing
- Cutting Width (Decimal Inch): 0.1575
- Cutting Width (mm): 4.00
- Full Radius: No
- Insert Hand: Neutral
- Insert Holding Method: Clamp
- Insert Material: Solid Carbide
- Insert Size: 3E400N04
- Insert Size Code: 3E400N04
- Insert Style: GX
- Iso Code: GX24-3E400N04-UD4
- Manufacturer Grade: WSM33S
- Manufacturers Catalog Number: False
- Material Grade: S30; M30; P35
- Maximum Depth of Cut (Decimal Inch): 0.1102
- Maximum Depth of Cut (mm): 2.80
- Maximum Depth of Cut Range (Decimal Inch): 0.1000 to 0.1500
- Maximum Depth of Cut Range (mm): 2.00 to 3.00
- Multi-Use Tool: Yes
- Overall Length (Decimal Inch): 0.9449
- Overall Length (mm): 24.00
- Primary Workpiece Material: Superalloy
- Primary Workpiece Material Code: M; P; S
- Series: Tiger-tec Silver
- Single Or Double End: Double
- Standards: ANSI; ISO
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Country of Origin: DE, Germany
- TAA Compliant: Yes
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Weight: 1.68
- Prohibited States: AK,HI,PR
