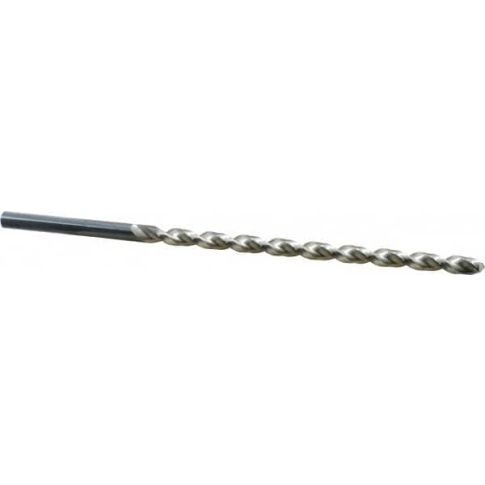

Extra Length Drill Bit: 0.3594" Dia, 130 ° MPN:5062566
Extra Length Drill Bit: 0.3594" Dia, 130 °, High Speed Steel
Extra Length Drill Bit: 0.3594" Dia, 130 degree, High Speed Steel Uncoated, Parabolic Flute, Straight-Cylindrical Shank, Series A1622
Product Information
- : 5062566
- Coating/Finish: Uncoated
- Coolant Through: No
- Cutting Direction: Right Hand
- Drill Bit Diameter Tolerance: +0.000 to -0.022 mm; +0.00000 to -0.00087 in
- Drill Bit Grade: High Performance
- Drill Bit Size (Decimal Inch): 0.3594
- Drill Point Angle: 130
- Flute By Diameter Ratio: 16xD
- Flute Length (Inch): 6-7/8
- Flute Type: Parabolic
- Maximum Drilling Depth (Decimal Inch): 6.2990
- Maximum Drilling Depth (mm): 160.00
- Number of Flutes: 2
- Overall Length (Inch): 9-27/32
- Point Type: Standard
- Primary Workpiece Material: Cast Iron; Non-Ferrous Metal; Steel
- Primary Workpiece Material Code: K; N; P
- Secondary Workpiece Material: Cobalt; Iron; Nickel; Titanium Alloy
- Secondary Workpiece Material Code: M; O; S
- Series: A1622
- Shank Diameter (Decimal Inch): 0.3590
- Shank Diameter (mm): 9.12
- Shank Length (Decimal Inch): 2.9530
- Shank Length (mm): 75.00
- Shank Type: Straight-Cylindrical
- Specification Designation: DIN
- Specification Number: False
- Standards: ANSI; DIN 1869-I; ISO
- Tool Application: Blind Hole; Stack Drilling
- Tool Material: High Speed Steel
- Web Configuration: Tapered
- Web Thinning: Web-Thinned
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Country of Origin: Coo Data Unavail
- TAA Compliant: No
- UNSPSC: 23241637
- CA Restricted (Prop 65): Unknown
- Prohibited States: AK,HI,PR
Product info last updated on October 31, 2024 12:03pm UTC
Category: Metalworking and Multipurpose Drill Bits
